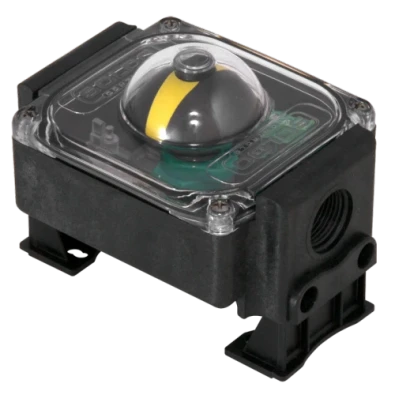

Soldo Sp Series - Limit Switch Box

Soldo Sp Series - Limit Switch Box

Model Number: SP

Contact to order Prices

The SOLDO SP SERIES compact limit switch box, designed not only for the industrial market but for indoor applications in hazardous areas.

Available in either glass-reinforced resin or nickel-plated aluminium, with a flat lid or 3D indicator.

The SP is a corrosion-resistant device, able to satisfy the needing in water treatment and desalination plants; SP can also match the Ex ia IIC T6 standards with the integral intrinsically safe certification, covering enclosure and electrical components inside.

With these devices, we are providing a ready to mount solution, thanks to the integrated Namur mounting kit.

Features:

  • Glass-reinforced resin enclosure with a transparent polycarbonate lid, ensuring a device unaffected by corrosion, in a salty and humid atmosphere.
  • One cable entry metrics or imperial.
  • Enhanced strength on the composite enclosure, with a thick moulding and durable threaded cable entries.
  • Easy wiring through the terminal PCB board
  • NOVA V3™ switch option ensures extreme durability and high power switching capabilities
  • ASI communication protocol board
  • Integrated mounting kit for Namur actuators.
SP01200-EHW00A1
SP01200-EHW00A1

SP Compact engineered resin LSB, mounting bracket included
01 El.mec. switch, SPDT, silver , max. 5A;250VAC, up tp SIL3, -20°C
2 nr. 2 switches or sensors
0 screw terminal strip with extra pass-through terminals (standard for all switches excluding 06, 1F)
0 No coating (for SP series)
-
E N° 1 M20x1,5 cable entry
H 3D black and yellow flux indicator
W Weather proof limit switch box
0 Ordinary location
0 Weather proof IP65
A Ambient temperature range:-20+80
1 Glass Reinforced Plastic enclosure with clear policarbonate cover

HS Code 8481 201000
Country of Origin ITALY
Nett Wt Each: 0.35KG
SP01200-EHW00A1

SP Compact engineered resin LSB, mounting bracket included
01 El.mec. switch, SPDT, silver , max. 5A;250VAC, up tp SIL3, -20°C
2 nr. 2 switches or sensors
0 screw terminal strip with extra pass-through terminals (standard for all switches excluding 06, 1F)
0 No coating (for SP series)
-
E N° 1 M20x1,5 cable entry
H 3D black and yellow flux indicator
W Weather proof limit switch box
0 Ordinary location
0 Weather proof IP65
A Ambient temperature range:-20+80
1 Glass Reinforced Plastic enclosure with clear policarbonate cover

HS Code 8481 201000
Country of Origin ITALY
Nett Wt Each: 0.35KG

£80.87 (ex VAT)

£97.05 (inc VAT)

Call to order Contact to order
