Torque motor technology with communications
Design features
• Auto calibration. Simple menu structure with options to auto calibrate all parameters or zero and end points only.
• LCD display. Alphanumeric digital display for process values and calibration.
• Partial Stroke Test (PST). Fully adjustable Partial Stroke Test. All functionality can be performed and selected locally, through push buttons, or remotely with communication protocol.
• Feedback signal. Analogue 4-20 mA position feedback option.
• PID control. Pre-calibrated and user-configurable variables via front panel pushbutton menu.
• Auto / Manual switch. Enables closed-loop automatic valve position control or manual positioning via the A/M switch. The manual mode is useful for troubleshooting, calibration, system testing or as a manual bypass.
• HART® communication. Allows commands, position feedback and diagnostics to be sent digitally over the current loop.
• Front panel pushbuttons for configuration. Four robust and positive acting pushbuttons for field configuration.
• Remote Mounting Option (YT-3301/YT-3302). Remote sensor via cable to enable the positioner to be mounted away from extreme temperature.
Models

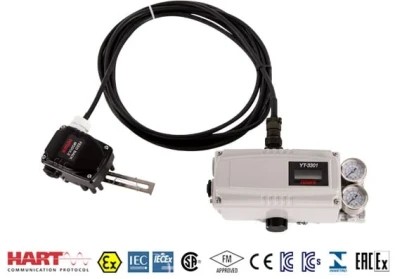

YT-3301 = Aluminium housing with remote sensor *pictured*
YT-3302 = Aluminium housing with remote sensor
YT-3303 = Aluminium housing with right side lever
