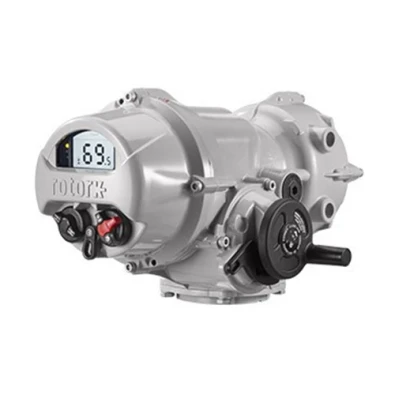

Rotork Iqtf - Full-Turn Actuator

The Rotork IQTF Full-Turn Actuator range are electric modulating actuators capable of multi-turn, rising output, linear output and direct rotary output. Includes special fast switching control inputs for hardwired control. Other Rotork IQT Actuators are available in our full range.

Electrical Supply:

• 3-phase
• 1-phase
• DC

Actuator Type:

• Full turn
• Isolating / regulating duty and modulating duty

Duty Cycle:

• Up to 1,800 starts per hour
• S4 / Class C

Torque Range:

• A = Torque range 20 to 250 Nm (14.8 to 184.5 lbf.ft)
• B = Torque range 20 to 3,000 Nm (14.8 to 2,214 lbf.ft)
• L = Thrust range 7.5 to 75.8 kN (1,693 to 17,036 lbf)
