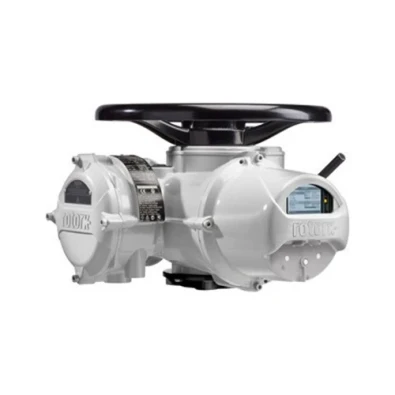

The Rotork IQ3M is suitable for up to 1,200 starts per hour (S4 / Class C). Direct seating torque output range from 11 to 542 Nm (7 to 400 lbf.ft). With second stage gearboxes, output seating torque up to 3,600 Nm (2,655 lbf.ft) and part-turn up to 77,000 Nm (56,790 lbf.ft).
The modulating version of the IQ 3-phase electric actuator has a solid state reversing starter in place of the electro mechanical contactors. It features fast-response remote control circuits for rapid control. To optimise positional control, the solid state starter also adds an electronic motor ‘brake' feature. Other Rotork IQ3 Actuators are available in the main Rotork Actuator range.
The features of the Rotork IQ3M include:
