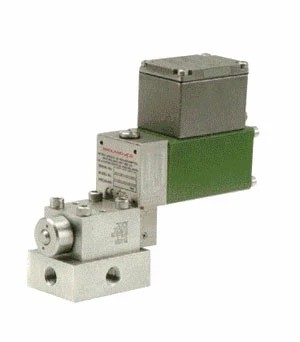

The stainless steel seat and ceramic ball design of the valve ensure a leak-tight shut-off. The design incorporates a balanced internal piloting system and lever mechanism to enable low powered operators to switch the valve at high pressures. The MIDLAND ACS DN3 BALL SEATED HYDRAULIC SOLENOID PILOT VALVE features and 'O' Ring interface that enables it to be fitted with a 1/4" NPT ported subplate as standard, or manifold mounted to reduce pipework, fittings, weight and space. This interface also allows direct mounting of the DN3 valve to the larger pilot-operated DN5, whereby increasing the flow capacity up to 200L/min. By removing just 4 bolts the valve can be dismounted without disturbing pipework and possibly contaminating the hydraulic system. Blanking of flushing plates can also be supplied.
The stainless steel seat and ceramic ball design of the valve ensure a leak tight shut off. The design incorporates a balanced internal piloting system and lever mechanism to enable low powered operators to switch the valve at high pressures. The DN3 valve features and 'O' Ring interface that enables it to be fitted with a 1/4" NPT ported subplate as standard, or manifold mounted to reduce pipework, fittings, weight and space. This interface also allows direct mounting of the DN3 valve to the larger pilot-operated DN5, whereby increasing the flow capacity up to 200L/min. By removing just 4 bols the valve can be dismounted without disturbing pipeowrk and possible contaminating the hydraulic system. Blanking of flushing plates can also be supplied.
Ambient temperature range: Standard -20C to +60C; Low Temp -50C to +60C
Filtration: Recommended 10 micron absolute
Ingress Protection: IP66/NEMA 4X
Operating pressure range: 0 to 1140 bar depending on operator type
Materials of Construction: Valve bodies and subplates 316L Stainless Steel; Wetted parts, various grades of stainless steel/ ceramic; Fasteners, A4, grade 80 stainless steel; Springs, stainless steel
Fluid Media: Suitable for use with Mineral Oils, Water Glycols, Methanol, Fresh Water, Natual Gas, and Nitrogen
The stainless steel seat and ceramic ball design of the valve ensure a leak tight shut off. The design incorporates a balanced internal piloting system and lever mechanism to enable low powered operators to switch the valve at high pressures. The DN3 valve features and 'O' Ring interface that enables it to be fitted with a 1/4" NPT ported subplate as standard, or manifold mounted to reduce pipework, fittings, weight and space. This interface also allows direct mounting of the DN3 valve to the larger pilot-operated DN5, whereby increasing the flow capacity up to 200L/min. By removing just 4 bols the valve can be dismounted without disturbing pipeowrk and possible contaminating the hydraulic system. Blanking of flushing plates can also be supplied.
Ambient temperature range: Standard -20C to +60C; Low Temp -50C to +60C
Filtration: Recommended 10 micron absolute
Ingress Protection: IP66/NEMA 4X
Operating pressure range: 0 to 1140 bar depending on operator type
Materials of Construction: Valve bodies and subplates 316L Stainless Steel; Wetted parts, various grades of stainless steel/ ceramic; Fasteners, A4, grade 80 stainless steel; Springs, stainless steel
Fluid Media: Suitable for use with Mineral Oils, Water Glycols, Methanol, Fresh Water, Natual Gas, and Nitrogen
£1,263.64 (ex VAT)
£1,516.37 (inc VAT)
