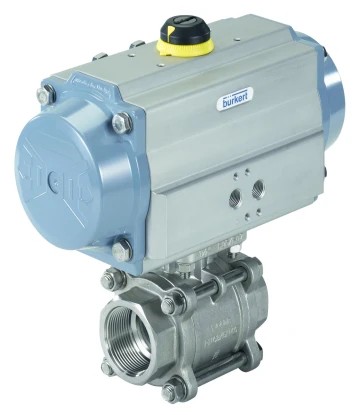

Burkert Type 8805 - 2/2 & 3/2 Way Ball Valve With Pnuematic Rotary Actuator
Download Manual Download Specification

Model Number: 8805

Request a quote View Prices

Burkert's range of precision actuated ball valves fulfil a wide variety of on-off process applications. Available in 2 or 3 way and both single-acting and spring return they exhibit high flow rates by their reliable full bore design.

  • Port Connection: 2/2 way - G 1/4 - G 4 Thread acc. DIN EN 10226-1 3/2 way - G 1/4 - G 2 Thread acc. DIN EN 10226-1
  • Body Material: Stainless steel 1.4408
  • Seal Material: PTFE
  • Max. Pressure: 100 Bar
93913772
Actuator Ball Valve Type 2657 15mm Orifice Size PTFE-seat sealing +EPDM Seals PVC Body Solvent Cement Socket Actuator Aluminium, 1/8" BSP Ports 110VAC Connection 20mm PVC solvent weld sockets
Check availability Request a quote
93913773
Actuator Ball Valve Type 2657 15mm Orifice Size PTFE-seat sealing +EPDM Seals PVC Body Solvent Cement Socket Actuator Aluminium, 1/8" BSP Ports 110VAC Connection 1/2" BSP female sockets
Check availability Request a quote
93913774
Actuator Ball Valve Type 2657 15mm Orifice Size PTFE-seat sealing +EPDM Seals PVC Body Solvent Cement Socket Actuator Aluminium 1/8" BSP Ports 110VAC Connection 1/2" plain PVC solvent weld sockets
Check availability Request a quote
93930325
Burkert Type 8805
Valve type BA - ball valve 2651
Actuator type T - pn. rotary actuator 2051
external control/feedback 00 - Without external control/feedback
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 80,0 - 80mm (3")
Seal material TQ - TFM4215
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection FD07 - flange pattern acc. DIN EN 1092-1 PN16 (old DIN 2633)
Port connection P/R FD07 - flange pattern acc. DIN EN 1092-1 PN16 (old DIN 2633)
Control function A - closed by spring force
Actuator version M - double piston actuator, aluminium, M-NBR seal
Actuator size AR - size 220
Amount of spring / spring pack 6 - 6 spring packages per actuator piston
Interface mounting parts 1 83M5 - distance of bore holes 80 and 130 mm, thread M5
Interface mounting parts 2 V17S - squared shaft 17mm, angle 45°
Variable code 1 AA33 - V-notch 60 degrees
Variable code 2 NA24 - anti-static device
Variable code 3 PE48 - approval FIRE PROTECTION SERVICE (FPSV)
Ambient temperature (max) 80
Ambient temperature (min) -40
STD (max) 8
STD (min) 6

HS Code 84818081
Country of Origin UK
Net Weight Each 30.1KG
Burkert Type 8805
Valve type BA - ball valve 2651
Actuator type T - pn. rotary actuator 2051
external control/feedback 00 - Without external control/feedback
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 80,0 - 80mm (3")
Seal material TQ - TFM4215
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection FD07 - flange pattern acc. DIN EN 1092-1 PN16 (old DIN 2633)
Port connection P/R FD07 - flange pattern acc. DIN EN 1092-1 PN16 (old DIN 2633)
Control function A - closed by spring force
Actuator version M - double piston actuator, aluminium, M-NBR seal
Actuator size AR - size 220
Amount of spring / spring pack 6 - 6 spring packages per actuator piston
Interface mounting parts 1 83M5 - distance of bore holes 80 and 130 mm, thread M5
Interface mounting parts 2 V17S - squared shaft 17mm, angle 45°
Variable code 1 AA33 - V-notch 60 degrees
Variable code 2 NA24 - anti-static device
Variable code 3 PE48 - approval FIRE PROTECTION SERVICE (FPSV)
Ambient temperature (max) 80
Ambient temperature (min) -40
STD (max) 8
STD (min) 6

HS Code 84818081
Country of Origin UK
Net Weight Each 30.1KG
Check availability Request a quote
93930326
with a spring return actuator
Check availability Request a quote
