Burkert Type 6518/6519 - 3/2, 5/2 And 5/3 Multi-Way Valves

Burkert Type 6518/6519 - 3/2, 5/2 And 5/3 Multi-Way Valves
Download Manual Download Specification

Model Number: 6518 6519

Contact to order Prices

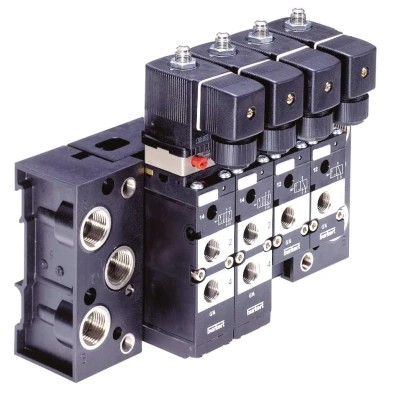

The Burkert Type 6518/6519 has a feature with high switch reliability diaphragm-driven seat valves (3/2 and 5/2 way) or spool valves (5/3 way). The valve width of 32mm allows high flow rates. The Types 6518/6519 can be used as single valves or as serial blocks.The valves work without a continuous air consumption and are used for the pneumatic control of double or single-acting actuators. A solenoid valve Type 6014 is used as a pilot.

Features of the Burkert Type 6519 are:

  • Port connection 1/4"
  • Pressure range 2-8
  • Media temperature –10 up to 50°C
  • Pilot operated

Benefits of the Type 6519 include:

  • High flow-rate capacity
  • Reduced power consumption
  • Single or manifold mounting
  • Standard-, EEx m and EEx i versions
  • Threaded port G 1/4” or NAMUR flange
131421B
Burkert Type 6519
Circuit function W - alternatively 5/2-ways or 3/2-ways
Orifice size 06,0 - 6,0mm (1/4")
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B FS05 - flange pattern: lateral NAMUR-flange
Mode of actuation B - electropneumatic / air-spring + mech. spring
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 02 - 2 watt
Pressure (bar) (max)10
Pressure (bar) (min) 2

HS Code: 84812090,
Country of origin: Germany,
Nett Wt Each: 0.491 KG
Burkert Type 6519
Circuit function W - alternatively 5/2-ways or 3/2-ways
Orifice size 06,0 - 6,0mm (1/4")
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B FS05 - flange pattern: lateral NAMUR-flange
Mode of actuation B - electropneumatic / air-spring + mech. spring
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 02 - 2 watt
Pressure (bar) (max)10
Pressure (bar) (min) 2

HS Code: 84812090,
Country of origin: Germany,
Nett Wt Each: 0.491 KG

£102.00 (ex VAT)

£122.40 (inc VAT)

In stock
Only 1 in stock
5-7 Days
131422B
Burkert Type 6519
Circuit function W - alternatively 5/2-ways or 3/2-ways
Orifice size 06,0 - 6,0mm (1/4")
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B FS05 - flange pattern: lateral NAMUR-flange
Mode of actuation B - electropneumatic / air-spring + mech. spring
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 56 - 50-60 Hz
Power consumption 02 - 2 watt
Pressure (bar) (max)10
Pressure (bar) (min) 2

HS Code: 84812090
Country Of Origin: Germany
Nett Wt Each: 0.491KG
Burkert Type 6519
Circuit function W - alternatively 5/2-ways or 3/2-ways
Orifice size 06,0 - 6,0mm (1/4")
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B FS05 - flange pattern: lateral NAMUR-flange
Mode of actuation B - electropneumatic / air-spring + mech. spring
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 56 - 50-60 Hz
Power consumption 02 - 2 watt
Pressure (bar) (max)10
Pressure (bar) (min) 2

HS Code: 84812090
Country Of Origin: Germany
Nett Wt Each: 0.491KG

£102.00 (ex VAT)

£122.40 (inc VAT)

Call to order Contact to order
131423D
Burkert Type 6519
Circuit function W - alternatively 5/2-ways or 3/2-ways
Orifice size 06,0 - 6,0mm (1/4")
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B FS05 - flange pattern: lateral NAMUR-flange
Mode of actuation B - electropneumatic / air-spring + mech. spring
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 56 - 50-60 Hz
Power consumption 02 - 2 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 2

HS Code: 84812090
Country Of Origin: Germany
Nett Wt Each: 0.481KG
Burkert Type 6519
Circuit function W - alternatively 5/2-ways or 3/2-ways
Orifice size 06,0 - 6,0mm (1/4")
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B FS05 - flange pattern: lateral NAMUR-flange
Mode of actuation B - electropneumatic / air-spring + mech. spring
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 56 - 50-60 Hz
Power consumption 02 - 2 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 2

HS Code: 84812090
Country Of Origin: Germany
Nett Wt Each: 0.481KG

£102.00 (ex VAT)

£122.40 (inc VAT)

Call to order Contact to order
131424D
Burkert Type 6519 Namur solenoid valve, 3/2 or 5/3 way function, Polyamide body, 1/4BSP ported, 230v50hz, Pressure range 2-8bar

£102.00 (ex VAT)

£122.40 (inc VAT)

Call to order Contact to order
132462

Type 6518 Pneumatic Valve, 3/2 Way Normally Open, 8mm Orifice Size, 1/4" BSP Ports, 24VAC, 2 Watt

£73.70 (ex VAT)

£88.44 (inc VAT)

Call to order Contact to order
132514H
Type MP05
Width per station AB - 18/19 mm
Connection staions 00 - without
Type of module pneumat. PS - pneumatic lateral-feed
No. of supply connection 2 - 2 supply connectors
Seal material BB - NBR
Material PA - polyamide
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B 0000 - not applicable
Flange pattern 0000 - without
Termination R - terminator right

HS Code 84819000
Country of Origin Germany
Net Weight 0.07KG
Type MP05
Width per station AB - 18/19 mm
Connection staions 00 - without
Type of module pneumat. PS - pneumatic lateral-feed
No. of supply connection 2 - 2 supply connectors
Seal material BB - NBR
Material PA - polyamide
Port connection P/R GM82 - G1/4 threaded port
Port connection A/B 0000 - not applicable
Flange pattern 0000 - without
Termination R - terminator right

HS Code 84819000
Country of Origin Germany
Net Weight 0.07KG

£13.40 (ex VAT)

£16.08 (inc VAT)

In stock
2-3 Weeks
132516B
Type MP05
Width per station 19 - 19 mm
Connection staions 02 - 2 positions
Type of module pneumat. PG - pneumatic basic model
No. of supply connection 2 - 2 supply connectors
Seal material BB - NBR
Material PA - polyamide
Port connection P/R 0000 - not applicable
Port connection A/B 0000 - not applicable
Flange pattern FM07 - flange pattern: interface module/valve (for type 0470)
Termination 0 - no terminator

HS Code 84819000
Country of Origin Germany
Net Weight 32G
Type MP05
Width per station 19 - 19 mm
Connection staions 02 - 2 positions
Type of module pneumat. PG - pneumatic basic model
No. of supply connection 2 - 2 supply connectors
Seal material BB - NBR
Material PA - polyamide
Port connection P/R 0000 - not applicable
Port connection A/B 0000 - not applicable
Flange pattern FM07 - flange pattern: interface module/valve (for type 0470)
Termination 0 - no terminator

HS Code 84819000
Country of Origin Germany
Net Weight 32G

£8.50 (ex VAT)

£10.20 (inc VAT)

In stock
2-3 Weeks
132517H
HS Code 84819000
Country of Origin Germany
Net Weight 0.046 KG

£13.30 (ex VAT)

£15.96 (inc VAT)

Call to order Contact to order
