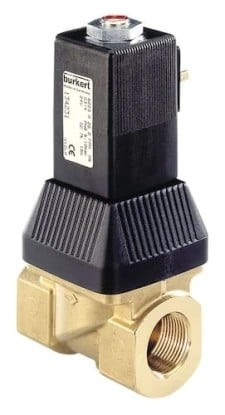

Burkert Type 6223 - Proportional Valve With Control Electronics
Download Manual Download Specification

Model Number: 6223

Request a quote View Prices

The BURKERT TYPE 6223 valve can be used for the control of larger flow quantities. Low hysteresis, high reproducibility and good response sensitivity guarantee good positioning behaviour. The valve closes tight. The push-over coil is easy to replace.

  • Port Connection: G 3/8, G 1/2, G 3/4, G 1
  • Body Material: Brass, stainless steel on request
  • Seal Material: FKM, others on request
  • Max Pressure: 10 Bar
  • Control valve for continuous control of liquids
  • Low hysteresis and high repeatability
  • Control with PWM signal
  • Servo-assisted, tight closing valve

View our full range of Burkert Valves.

222477
Burkert Type 6223
Circuit function A - 2/2-ways; normally closed
Orifice size 20,0 - 20mm (3/4")
Seal material FF - FKM
Material MS - brass
Port connection GM86 - G 1 threaded port
Coil size K - 42 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 16 - 16 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0,5

HS Code 84818079
Country of Origin Germany
Net Weight 1.33 KG





Burkert Type 6223
Circuit function A - 2/2-ways; normally closed
Orifice size 20,0 - 20mm (3/4")
Seal material FF - FKM
Material MS - brass
Port connection GM86 - G 1 threaded port
Coil size K - 42 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 16 - 16 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0,5

HS Code 84818079
Country of Origin Germany
Net Weight 1.33 KG
