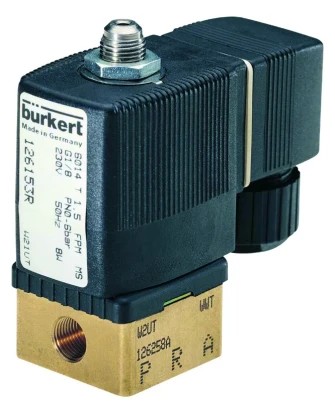

The Burkert Type 6014 is a modular direct acting solenoid valve system with a brass body. The Burkert Type 6014 direct-acting 3/2-way solenoid valve may be mounted singly or in flange version on a manifold. FKM high quality seal material can be used for a lot of different mediums including neutral gases and liquids such as compressed air, natural gas, water, hydraulic oil and technical vacuum.
Some of the features include:
Port size 1/8" - 1/4"
Pressure range 0-10 bar
Body material Brass + st/st
Seal material FPM
Electrical connection cable plug, Form A - With or without manual override as standard
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Pressure (bar) (max)10
Pressure (bar) (min) 0
HS Code 84818079
Country Of Origin: Germany
Nett WT Each: 0.332KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Pressure (bar) (max)10
Pressure (bar) (min) 0
HS Code 84818079
Country Of Origin: Germany
Nett WT Each: 0.332KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.328KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max)10
Pressure (bar) (min) 0
HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.325KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max)10
Pressure (bar) (min) 0
HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.325KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.326KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 HA17 - manual override, PA-rotable manual override, rotable lever
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.331 KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 HA17 - manual override, PA-rotable manual override, rotable lever
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.331 KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.435KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 HA17 - manual override, PA-rotable manual override, rotable lever
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.429KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 HA17 - manual override, PA-rotable manual override, rotable lever
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.429KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.433KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.428KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0
HS Code 84818079
Country of Origin Germany
Net Weight 0.426KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 HA17 - manual override, PA-rotable manual override, rotable lever
Pressure (bar) (max)10
Pressure (bar) (min) 0
HS Code: 84818079
Country of Origin: Germany
Weight: 0.422 KG
Burkert Type 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 HA17 - manual override, PA-rotable manual override, rotable lever
Pressure (bar) (max)10
Pressure (bar) (min) 0
HS Code: 84818079
Country of Origin: Germany
Weight: 0.422 KG
Modular direct acting solenoid valve system with brass body. For neutral gases and liquids such as compressed air, natural gas, water, hydraulic oil, Technical vacuum.
• Port size 1/8” - 1/4”
• Pressure range 0-10 bar
• Body material Brass + st/st
• Seal material FPM
Type TYP_0009 6014 6014 Circuit function WW D 3/2 ways; normally open; output B under pressure Orifice size DN 01,2 1,2mm (3/64") Seal material FKM Body material brass Port connection G1/8 threaded port Voltage SP 024 24 volts Frequency FR DC DC Power consumption 2 watt Special Feature VAR1 DF75 core 0311-1515-123 VAR2 NA38 coil for higher temperatures
