Burkert Type 6013 Eex M - 2/2 Way Hazardous Area Solenoid Valve
Download Manual Download Specification

Model Number: 6013 EEx m

Request a quote View Prices

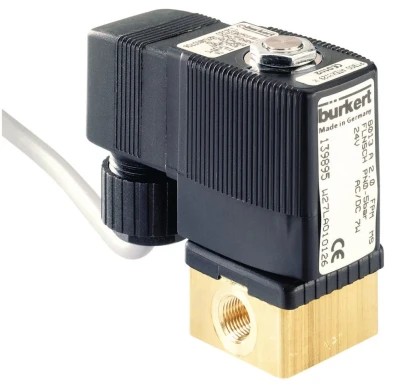

The Burkert type 6013 solenoid valve is available to ATEX standards EExem II T4 2G II2 D. With a brass body and Viton seals as standard this direct acting Hazardous area solenoid valve is manufactured with the option of either a certified electrical junction box or with 3mt integral cables.

  • Pressure range 0 – 10 bar , Suitable for technical vacuum
  • Port Connections Threaded port G 1/8“ – G 1/4“
  • Operating voltages 24, 110, 230 V/UC
  • Duty cycle 100% continuously rated
  • Rating IP65
  • Approvals EEx m II T4 with moulded cable & EEx me II T4 with terminal box
278588
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material VA - stainless steel
Port connection GM82 - G1/4 threaded port
Coil size 6 - 40 mm
Voltage 110 - 110 volts
Frequency UC - AC/DC
Power consumption 09 - 9 watt
Variable code 1 JW10 - CABLE LENGTH 3000 MM
Variable code 2 PX23 - Approval PTB 14 ATEX 2023 X/ IECEx PTB 14.0049X, Ex "mb",2G IIC/2D IIIC, SG6, T4, Tamb -40°C/ 60°C, 9W, 30-790mA, single mounting
Pressure (bar) (max) 5
Pressure (bar) (min) 0

HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.75KG
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material VA - stainless steel
Port connection GM82 - G1/4 threaded port
Coil size 6 - 40 mm
Voltage 110 - 110 volts
Frequency UC - AC/DC
Power consumption 09 - 9 watt
Variable code 1 JW10 - CABLE LENGTH 3000 MM
Variable code 2 PX23 - Approval PTB 14 ATEX 2023 X/ IECEx PTB 14.0049X, Ex "mb",2G IIC/2D IIIC, SG6, T4, Tamb -40°C/ 60°C, 9W, 30-790mA, single mounting
Pressure (bar) (max) 5
Pressure (bar) (min) 0

HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.75KG

£287.00 (ex VAT)

£344.40 (inc VAT)

In stock
Only 1 in stock
2-3 Weeks
289200

Type 6013 Solenoid Valve, 2/2 Way Normally Closed, 3mm Orifice Size, EPDM Seals, Stainless Steel Body, 1/4" BSP, 110VUC, 9 Watt *JW10 Cable Length 3000mm *PX23 Approval PTB 14 ATEX 2023 X/ IECEx PTB 14.0049X, Ex "mb",2G IIC/2D IIIC, SG6, T4, Tamb -40
