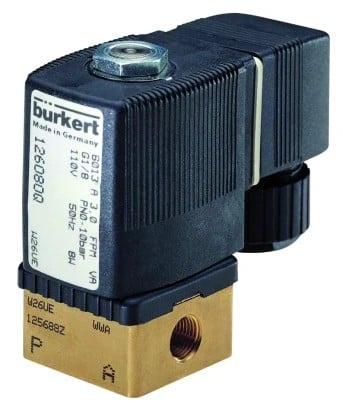

Burkert Type 6013 - 2/2 Way Solenoid Valve Normally Closed

Burkert Type 6013 - 2/2 Way Solenoid Valve Normally Closed
Download Manual Download Specification

Model Number: 6013

Contact to order Prices

The BURKERT TYPE 6013 is a direct-acting solenoid valve system with a brass body. For neutral gases and liquids such as compressed air, natural gas, water and hydraulic oil & Technical vacuum.

  • Port Connection: G1/8, G1/4, G3/8, sub-base
  • Body Material: Brass & Stainless Steel
  • Seal Material: FKM, PTFE/Graphite & EPDM
  • Pressure: 0 - 25 Bar
  • Media temperature ranges covering –10°C + 180°C
019440
Type 6013 Solenoid Valve, 2/2 Way Normally Closed, 3mm Orifice Size, FKM Seals, Brass Body, 1/4" BSP Ports, 230V/50Hz, 8 Watt *NL02 Usable for applications with oxygen (non-metallic materials in contact)

£116.30 (ex VAT)

£139.56 (inc VAT)

Call to order Contact to order
125293M
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 DF72 - core V013-G1-00640379
Variable code 2 MC14 - flow below seat
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.329 KG
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 DF72 - core V013-G1-00640379
Variable code 2 MC14 - flow below seat
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.329 KG

£79.30 (ex VAT)

£95.16 (inc VAT)

Call to order Contact to order
125296Q
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 DF72 - core V013-G1-00640379
Variable code 2 MC14 - flow below seat
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.323KG
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 DF72 - core V013-G1-00640379
Variable code 2 MC14 - flow below seat
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.323KG

£79.30 (ex VAT)

£95.16 (inc VAT)

In stock
Only 1 in stock
2-3 Weeks
125301
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 EA60 - spring 014461
Pressure (bar) (max) 6
Pressure (bar) (min) 0

HS Code: 84818079
Country Of Origin: Germany
Nett WT Each: 0.435KG
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Variable code 1 EA60 - spring 014461
Pressure (bar) (max) 6
Pressure (bar) (min) 0

HS Code: 84818079
Country Of Origin: Germany
Nett WT Each: 0.435KG

£85.60 (ex VAT)

£102.72 (inc VAT)

Pre-order
5-7 Days
125302W
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 EA60 - spring 014461

HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.431KG

£85.60 (ex VAT)

£102.72 (inc VAT)

Call to order Contact to order
125303X
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 EA60 - spring 014461
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.425KG
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 EA60 - spring 014461
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.425KG

£85.60 (ex VAT)

£102.72 (inc VAT)

Call to order Contact to order
125304Y
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 EA60 - spring 014461
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.425KG


Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 EA60 - spring 014461
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.425KG


£85.60 (ex VAT)

£102.72 (inc VAT)

Call to order Contact to order
125317L
Burkert Type 6013 solenoid valve, 2/2 way normally closed function, Stainless Steel body, FKM seals, 1/4BSP ported, 24VDC, Pressure range 0-6bar HS Code 84818079

£126.10 (ex VAT)

£151.32 (inc VAT)

Call to order Contact to order
126084G
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material VA - stainless steel
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.411KG

£159.00 (ex VAT)

£190.80 (inc VAT)

Call to order Contact to order
126093H
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.322 KG

£72.60 (ex VAT)

£87.12 (inc VAT)

Call to order Contact to order
134237
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM81 - G1/8 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Pressure (bar) (max)12
Pressure (bar) (min) 0

HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.331KG

£72.60 (ex VAT)

£87.12 (inc VAT)

Call to order Contact to order
136018
Type 6013 Solenoid Valve, 2/2 Way Normally Closed, 2mm Orifice Size, PTFE + Graphite Seals, Brass Body,1/4" BSP Ports, 230V/50Hz, 8 Watt, *AE01 Body with SS-seat *NA38 coil for higher temperatures

£115.44 (ex VAT)

£138.53 (inc VAT)

Call to order Contact to order
136019
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material EG - EG PTFE-seat-sealing + graphite
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 6 - 40 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 10 - 10 watt
Variable code 1 AE01 - body with SS-seat
Variable code 2 NA38 - Coil material insulation class H
Pressure (bar) (max) 8
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.543KG
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 03,0 - 3,0mm (1/8")
Seal material EG - EG PTFE-seat-sealing + graphite
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 6 - 40 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 10 - 10 watt
Variable code 1 AE01 - body with SS-seat
Variable code 2 NA38 - Coil material insulation class H
Pressure (bar) (max) 8
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.543KG

£118.00 (ex VAT)

£141.60 (inc VAT)

Call to order Contact to order
137537
Burkert Type 6013
Circuit function A - 2/2-ways; normally closed
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection GM82 - G1/4 threaded port
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 08 - 8 watt
Pressure (bar) (max) 12
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.43KG

£83.10 (ex VAT)

£99.72 (inc VAT)

Call to order Contact to order
219916
Type 6013 Solenoid Valve, 2/2 Way Normally Closed, 1mm Orifice Size, FKM Seals, Brass Body, 1/4" BSP, 24VDC, *KR66 Pressure Data DP 0-10Bar
HS Code 84818079

£83.10 (ex VAT)

£99.72 (inc VAT)

Call to order Contact to order
267158
+NL02, Burkert Type 6013 solenoid valves 1/4NPT ported, 2/2 normally closed function, brass body with FKM seals, usable for applications with oxygen (non-metallic materials in contact with fluid are BAM-tested), blue label, DIS 1000020797.

£119.67 (ex VAT)

£143.60 (inc VAT)

Call to order Contact to order
278601
Type 6013 Solenoid Valve, 2/2 Way Normally Closed, 2mm Orifice Size, FKM Seals, Stainless Steel Body, 1/4" BSP Ports, 24VUC, 9 Watt, *JW10 Cable Length 3000mm *PX23 Approval PTB 14 ATEX 2023 X/ IECEx PTB 14.0049X, Ex "mb",2G IIC/2D IIIC,SG6, T4, Tamb -40°C/ 60°C, 9W, 30-790mA, single mounting

£281.57 (ex VAT)

£337.88 (inc VAT)

Call to order Contact to order
672306

The BURKERT TYPE 6013 is a direct-acting solenoid valve system with a brass body. For neutral gases and liquids such as compressed air, natural gas, water and hydraulic oil & Technical vacuum.

  • Port Connection: G1/8, G1/4, G3/8, sub-base
  • Body Material: Brass & Stainless Steel
  • Seal Material: FKM, PTFE/Graphite & EPDM
  • Pressure: 0 - 25 Bar
  • Media temperature ranges covering –10°C + 180°C

£16.18 (ex VAT)

£19.42 (inc VAT)

Call to order Contact to order

Not sure which product you need?

Contact our technical sales advisors here.

Need a bespoke part?

Our team of engineers are fully equipped to provide bespoke system design and manufacture.

This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.

Call our technical sales team for advice

+44 (0) 151 343 9966
sales@finecontrols.com
helpdesk technician

Latest news

View all news
3 way solenoid valves

Ask the Expert

Kick and Drop Valve Coils Versus Standard Coils - A Comprehensive Guide
unnamed_11 890x400w

General News

Accurate Control Solutions for the Chemical Dosing industry.
unnamed_3 890x400w

Ask the Expert

How to choose the right process control valve and why it is important.
fine_control 890x400w

General News

The role of flowmeters in the pharmaceutical industry

This site uses cookies to monitor site performance and provide a more responsive and personalised experience. You must agree to our use of certain cookies. For more information on how we use and manage cookies, please read our Privacy Policy.

Close Accept all & close
