Model Number: 2702

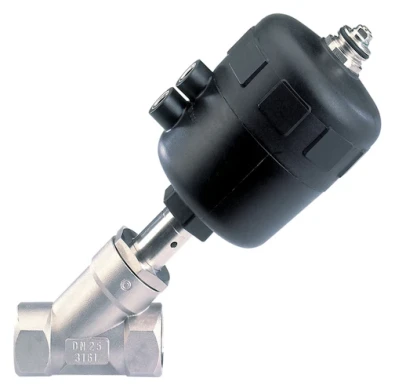

The BURKERT TYPE 2702 is a proportional control valve with an electro-pneumatically operated positioner which offers the main functional groups position sensor, electro-pneumatic control system and micro-processor controlled electronics. Programmable flow curves: linear equal percentage & freely programmable at the operating point.

PLEASE NOTE THIS PRODUCT IS NO LONGER AVAILABLE - REPLACED BY TYPE 2300

  • Signal input for positioner: Unit signal 4...20mA, 0...20mA & 0...10V
  • Maximum operating pressure 16 bar (at ambient temperature)
  • Body material Stainless steel 1.4581
  • Plug and stem Stainless steel 1.4401
  • Medium temperature –10°C … + 180°C
  • Integrated, cascaded process controller with parameter definable PID-algorithm
  • LCD and key pad, clear menu-guided program & code-protection against authorised access
