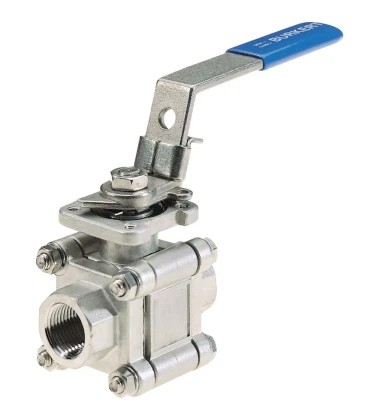

Burkert Type 2654 - Quarter Turn Ball Valve
Download Manual

Model Number: 2654

Request a quote View Prices

Quarter-Turn Ball Valve Systems for normal and slightly aggressive fluids.

  • Port Connection: G 1/2 - G 4 BSP, NPT, SW, BW
  • Body Material: Stainless steel 1.4401; Nickel-plated brass
  • Seal Material: PTFE
  • Max. Pressure: 100 Bar
93951480
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 12,5 - 12,5 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM83 - G 3/8 threaded port
Port connection P/R GM83 - G 3/8 threaded port
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 0.716 KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 12,5 - 12,5 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM83 - G 3/8 threaded port
Port connection P/R GM83 - G 3/8 threaded port
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 0.716 KG
Check availability Request a quote
93951481
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 15,0 - 15mm (9/16")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM84 - G1/2 threaded port
Port connection P/R GM84 - G1/2 threaded port
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device

HS Code 84818081
Country of Origin Taiwan
Net Weight 0.55 KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 15,0 - 15mm (9/16")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM84 - G1/2 threaded port
Port connection P/R GM84 - G1/2 threaded port
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device

HS Code 84818081
Country of Origin Taiwan
Net Weight 0.55 KG
Check availability Request a quote
93951482
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 20,0 - 20mm (3/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM85 - G3/4 threaded port
Port connection P/R GM85 - G3/4 threaded port
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.556KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 20,0 - 20mm (3/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM85 - G3/4 threaded port
Port connection P/R GM85 - G3/4 threaded port
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.556KG
Check availability Request a quote
93951483
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 25,0 - 25mm (1")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM86 - G 1 threaded port
Port connection P/R GM86 - G 1 threaded port
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.1KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 25,0 - 25mm (1")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM86 - G 1 threaded port
Port connection P/R GM86 - G 1 threaded port
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.1KG
Check availability Request a quote
93951484
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 32,0 - 32mm (1 1/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM87 - G1 1/4 threaded port
Port connection P/R GM87 - G1 1/4 threaded port
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 1.772 KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 32,0 - 32mm (1 1/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM87 - G1 1/4 threaded port
Port connection P/R GM87 - G1 1/4 threaded port
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 1.772 KG
Check availability Request a quote
93951485
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 38,0 - 38 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM88 - G1 1/2 threaded port
Port connection P/R GM88 - G1 1/2 threaded port
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 1.561 KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 38,0 - 38 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM88 - G1 1/2 threaded port
Port connection P/R GM88 - G1 1/2 threaded port
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 1.561 KG
Check availability Request a quote
93951486
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 50,0 - 50mm (2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM89 - G2 threaded port
Port connection P/R GM89 - G2 threaded port
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 3.051KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 50,0 - 50mm (2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM89 - G2 threaded port
Port connection P/R GM89 - G2 threaded port
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 3.051KG
Check availability Request a quote
93951487
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 65,0 - 65mm (2 1/2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM90 - G2 1/2 threaded port
Port connection P/R GM90 - G2 1/2 threaded port
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 4.94KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 65,0 - 65mm (2 1/2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM90 - G2 1/2 threaded port
Port connection P/R GM90 - G2 1/2 threaded port
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 4.94KG
Check availability Request a quote
93951488
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 80,0 - 80mm (3")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM91 - G3 threaded port
Port connection P/R GM91 - G3 threaded port
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 12.6KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 80,0 - 80mm (3")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM91 - G3 threaded port
Port connection P/R GM91 - G3 threaded port
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 12.6KG
Check availability Request a quote
93951524
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 12,5 - 12,5 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4C - Weld end 17,1 x 2,31 according to ASME B36.19M Schedule 40 (3/8")
Port connection P/R SC4C - Weld end 17,1 x 2,31 according to ASME B36.19M Schedule 40 (3/8")
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.528KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 12,5 - 12,5 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4C - Weld end 17,1 x 2,31 according to ASME B36.19M Schedule 40 (3/8")
Port connection P/R SC4C - Weld end 17,1 x 2,31 according to ASME B36.19M Schedule 40 (3/8")
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.528KG
Check availability Request a quote
93951525
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 15,0 - 15mm (9/16")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4D - Weld end 21,3 x 2,77 according to ASME B36.19M Schedule 40 (1/2")
Port connection P/R SC4D - Weld end 21,3 x 2,77 according to ASME B36.19M Schedule 40 (½")
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.1KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 15,0 - 15mm (9/16")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4D - Weld end 21,3 x 2,77 according to ASME B36.19M Schedule 40 (1/2")
Port connection P/R SC4D - Weld end 21,3 x 2,77 according to ASME B36.19M Schedule 40 (½")
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.1KG
Check availability Request a quote
93951526
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 20,0 - 20mm (3/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4E - Weld end 26,7 x 2,87 according to ASME B36.19M Schedule 40 (3/4")
Port connection P/R SC4E - Weld end 26,7 x 2,87 according to ASME B36.19M Schedule 40 (¾")
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
KV value (M*3/H) 46,0
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 0.556KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 20,0 - 20mm (3/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4E - Weld end 26,7 x 2,87 according to ASME B36.19M Schedule 40 (3/4")
Port connection P/R SC4E - Weld end 26,7 x 2,87 according to ASME B36.19M Schedule 40 (¾")
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
KV value (M*3/H) 46,0
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 0.556KG
Check availability Request a quote
93951527
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 25,0 - 25mm (1")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4F - Weld end 33,4 x 3,38 according to ASME B36.19M Schedule 40 (1")
Port connection P/R SC4F - Weld end 33,4 x 3,38 according to ASME B36.19M Schedule 40 (1")
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 1.2KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 25,0 - 25mm (1")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4F - Weld end 33,4 x 3,38 according to ASME B36.19M Schedule 40 (1")
Port connection P/R SC4F - Weld end 33,4 x 3,38 according to ASME B36.19M Schedule 40 (1")
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 1.2KG
Check availability Request a quote
93951528
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 32,0 - 32mm (1 1/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4G - Weld end 42,2 x 3,56 according to ASME B36.19M Schedule 40 (1 1/4")
Port connection P/R SC4G - Weld end 42,2 x 3,56 according to ASME B36.19M Schedule 40 (1¼")
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
KV value (M*3/H) 105
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 1.878KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 32,0 - 32mm (1 1/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4G - Weld end 42,2 x 3,56 according to ASME B36.19M Schedule 40 (1 1/4")
Port connection P/R SC4G - Weld end 42,2 x 3,56 according to ASME B36.19M Schedule 40 (1¼")
Interf. act/fitting flange 45 - F04 / F05
Interf. act/fitting shaft 11 - 11 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
KV value (M*3/H) 105
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 1.878KG
Check availability Request a quote
93951529
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 38,0 - 38 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4H - Weld end 48,3 x 3,68 according to ASME B36.19M Schedule 40 (1 1/2")
Port connection P/R SC4H - Weld end 48,3 x 3,68 according to ASME B36.19M Schedule 40 (1½")
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 2.467KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 38,0 - 38 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4H - Weld end 48,3 x 3,68 according to ASME B36.19M Schedule 40 (1 1/2")
Port connection P/R SC4H - Weld end 48,3 x 3,68 according to ASME B36.19M Schedule 40 (1½")
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 2.467KG
Check availability Request a quote
93951530
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 50,0 - 50mm (2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4I - Weld end 60,3 x 3,91 according to ASME B36.19M Schedule 40 (2")
Port connection P/R SC4I - Weld end 60,3 x 3,91 according to ASME B36.19M Schedule 40 (2")
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 4.531KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 50,0 - 50mm (2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4I - Weld end 60,3 x 3,91 according to ASME B36.19M Schedule 40 (2")
Port connection P/R SC4I - Weld end 60,3 x 3,91 according to ASME B36.19M Schedule 40 (2")
Interf. act/fitting flange 57 - F05 / F07
Interf. act/fitting shaft 14 - 14 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 4.531KG
Check availability Request a quote
93951531
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 65,0 - 65mm (2 1/2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4J - Weld end 73,0 x 5,16 according to ASME B36.19M Schedule 40 (2 1/2")
Port connection P/R SC4J - Weld end 73,0 x 5,16 according to ASME B36.19M Schedule 40 (2½")
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 4.94 KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 65,0 - 65mm (2 1/2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4J - Weld end 73,0 x 5,16 according to ASME B36.19M Schedule 40 (2 1/2")
Port connection P/R SC4J - Weld end 73,0 x 5,16 according to ASME B36.19M Schedule 40 (2½")
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 4.94 KG
Check availability Request a quote
93951532
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 80,0 - 80mm (3")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4K - Weld end 88,9 x 5,49 according to ASME B36.19M Schedule 40 (3")
Port connection P/R SC4K - Weld end 88,9 x 5,49 according to ASME B36.19M Schedule 40 (3")
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 4.9KG
Burkert Type 2654
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 80,0 - 80mm (3")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection SC4K - Weld end 88,9 x 5,49 according to ASME B36.19M Schedule 40 (3")
Port connection P/R SC4K - Weld end 88,9 x 5,49 according to ASME B36.19M Schedule 40 (3")
Interf. act/fitting flange 71 - F07 / F10
Interf. act/fitting shaft 17 - 17 mm
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ05 - 2654-302F
Variable code 3 NA24 - anti-static device
Pressure (bar) (max) 55
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight 4.9KG
Check availability Request a quote

Not sure which product you need?

Contact our technical sales advisors here.

Need a bespoke part?

Our team of engineers are fully equipped to provide bespoke system design and manufacture.

This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.

Call our technical sales team for advice

+44 (0) 151 343 9966
sales@finecontrols.com
helpdesk technician

Latest news

View all news
3 way solenoid valves

Ask the Expert

Kick and Drop Valve Coils Versus Standard Coils - A Comprehensive Guide
unnamed_11 890x400w

General News

Accurate Control Solutions for the Chemical Dosing industry.
unnamed_3 890x400w

Ask the Expert

How to choose the right process control valve and why it is important.
fine_control 890x400w

General News

The role of flowmeters in the pharmaceutical industry

This site uses cookies to monitor site performance and provide a more responsive and personalised experience. You must agree to our use of certain cookies. For more information on how we use and manage cookies, please read our Privacy Policy.

Close Accept all & close
