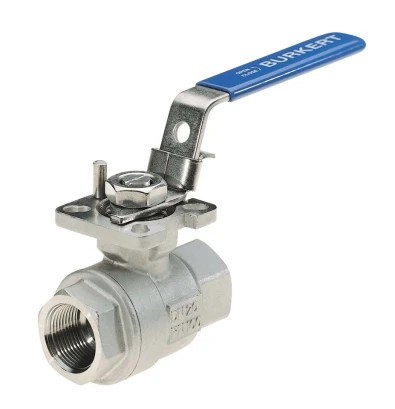

Burkert Type 2651 - Quarter Turn Ball Valve

Free UK Shipping over £100

Fast Shipping

Worldwide Shipping

Technical Sales Team

{"ga_data":{"item_list_id":219,"item_list_name":"Burkert Type 2651 - Quarter Turn Ball Valve 2651","items":[{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (9390106)","price":"431.99","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950009)","price":"30.50","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950022)","price":"22.40","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950023)","price":"26.50","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950024)","price":"41.10","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950025)","price":"54.90","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950026)","price":"75.10","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950027)","price":"102.00","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950028)","price":"80.44","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950029)","price":"96.25","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950030)","price":"119.04","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950031)","price":"163.34","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950032)","price":"229.47","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950033)","price":"300.64","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950034)","price":"476.56","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950035)","price":"813.79","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950036)","price":"957.40","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950100)","price":"70.63","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950101)","price":"116.03","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950102)","price":"151.94","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950103)","price":"198.39","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950104)","price":"233.96","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950105)","price":"310.65","quantity":1,"item_brand":"Burkert"},{"item_name":"Burkert Type 2651 - Quarter Turn Ball Valve - (93950108)","price":"787.80","quantity":1,"item_brand":"Burkert"}]}}

Download Manual

Model Number: 2651

Request a quote View Prices

Quarter-Turn Ball Valve Systems for normal and slightly aggressive fluids
Port Connection: G 1/2 - G 4 BSP, NPT PN16 / ASA150 flanges
Body Material: Stainless steel 1.4401; Nickel-plated brass
Seal Material: PTFE
Max. Pressure: 100 Ba

Part Number

Description

Price

Quantity

9390106

BURKERT DN65 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607

Check availability Request a quote

93950009

Burkert Type 2651
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 11,0 - 11mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM82 - G1/4 threaded port
Port connection P/R GM82 - G1/4 threaded port
Interf. act/fitting flange 34 - F03/F04 acc. DIN 3337 and ISO 5211
Interf. act/fitting shaft 09 - 9 mm
Variable code 1 HA01 - without manual override
Variable code 2 HZ02 - 2651-201D
Variable code 3 NA24 - anti-static device
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 100
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 0.36KG

See more See Less

Check availability Request a quote

93950022

Burkert Type 2651
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 15,0 - 15mm (9/16")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM84 - G1/2 threaded port
Port connection P/R GM84 - G1/2 threaded port
Interf. act/fitting flange 00 - no description
Interf. act/fitting shaft 00 - no description
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ17 - 2651-201F
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.26 KG

See more See Less

Check availability Request a quote

93950023

Burkert Type 2651
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 20,0 - 20mm (3/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM85 - G3/4 threaded port
Port connection P/R GM85 - G3/4 threaded port
Interf. act/fitting flange 00 - no description
Interf. act/fitting shaft 00 - no description
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ17 - 2651-201F
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code 84818081
Country of Origin Taiwan
Net Weight Each 0.52KG

See more See Less

Check availability Request a quote

93950024

Burkert Type 2651
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 25,0 - 25mm (1")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM86 - G 1 threaded port
Port connection P/R GM86 - G 1 threaded port
Interf. act/fitting flange 00 - no description
Interf. act/fitting shaft 00 - no description
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ17 - 2651-201F
KV value (M*3/H) 72,0
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Counrty Of Origin: Taiwan
Nett Wt Each: 0.68KG

See more See Less

Check availability Request a quote

93950025

Burkert Type 2651
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 32,0 - 32mm (1 1/4")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM87 - G1 1/4 threaded port
Port connection P/R GM87 - G1 1/4 threaded port
Interf. act/fitting flange 00 - no description
Interf. act/fitting shaft 00 - no description
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ17 - 2651-201F
KV value (M*3/H) 105
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 1.1KG

See more See Less

Check availability Request a quote

93950026

Burkert Type 2651
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 38,0 - 38 mm
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM88 - G1 1/2 threaded port
Port connection P/R GM88 - G1 1/2 threaded port
Interf. act/fitting flange 00 - no description
Interf. act/fitting shaft 00 - no description
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ17 - 2651-201F
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 1.74KG

See more See Less

Check availability Request a quote

93950027

Burkert Type 2651
Paths/positions 2 - 2 ways / 2 position
Switched position 00 - no description
Orifice size 50,0 - 50mm (2")
Seal material EJ - PTFE - for Food & Beverage
Material VO - stainless steel A351 Gr.CF8 stainless steel A351 Gr.CF8 M
Port connection GM89 - G2 threaded port
Port connection P/R GM89 - G2 threaded port
Interf. act/fitting flange 00 - no description
Interf. act/fitting shaft 00 - no description
Variable code 1 HA34 - lockable manual override
Variable code 2 HZ17 - 2651-201F
KV value (M*3/H) 275
Medium temperature (degree C) (max) 160
Medium temperature (degree C) (min) -20
Pressure (bar) (max) 63
Pressure (bar) (min) 0

HS Code: 84818081
Country Of Origin: Taiwan
Nett Wt Each: 2.34KG

See more See Less

Check availability Request a quote

93950028

BURKERT DN15 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950029

BURKERT DN20 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950030

BURKERT DN25 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950031

BURKERT DN32 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950032

BURKERT DN40 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950033

BURKERT DN50 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950034

BURKERT DN65 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950035

BURKERT DN80 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges, Antistatic & Fire safe API607

Check availability Request a quote

93950036

BURKERT DN100 ASA150 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, ASA150 Flanges Antistatic & Fire safe API607

Check availability Request a quote

93950100

BURKERT DN15 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607

Check availability Request a quote

93950101

BURKERT DN20 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607
HS Code: 8481 8081

Check availability Request a quote

93950102

BURKERT DN25 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607

Check availability Request a quote

93950103

BURKERT DN32 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607

Check availability Request a quote

93950104

BURKERT DN40 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607

Check availability Request a quote

93950105

BURKERT DN50 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607

Check availability Request a quote

93950108

BURKERT DN100 PN16 Flanged Ball valve type 2651 2 piece 316 stainless steel body, PTFE seals, Lever operation, PN16 Flanged anitistatic & Fire safe API607

Check availability Request a quote
