Burkert Type 255 - 2/2 Way Solenoid Valve

Burkert Type 255 - 2/2 Way Solenoid Valve
Download Manual Download Specification

Model Number: 255

Contact to order Prices

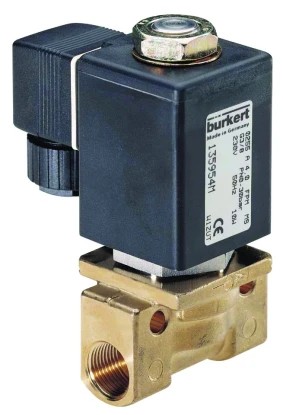

The BURKERT type 2SS Valve is a 2/2 Way normally closed direct acting solenoid valve available in st/st or brass and with a choice of seal materials for temperatures up to 180°C.

  • Port Connection: G 1/4, G 3/8, G 1/2
  • Body Material: Brass with stainless steel seat 1.4305 or stainless steel body 1.4581
  • Seal Material: FKM, PTFE (others on request)
  • Max Pressure: 100 Bar
  • Maximum Temperature 180°C
076551
Burkert Type 0255
Circuit function A - 2/2-ways; normally closed
Orifice size 04,0 - 4,0mm (5/32")
Seal material EF - PTFE-seat-sealing + FKM
Material MS - brass
Port connection GM84 - G1/2 threaded port
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 10 - 10 watt
Variable code 1 JH78 - Cable plug type 2518 (00361687), without wiring 3 poles, 0-250 V AC/DC, silicone seal
Variable code 2 KC74 - with mounting bracket
Pressure (bar) (max)10
Pressure (bar) (min) 0

HS Code 84818079
Country Of Origin: Germany
Nett Wt Each: 0.793KG
Burkert Type 0255
Circuit function A - 2/2-ways; normally closed
Orifice size 04,0 - 4,0mm (5/32")
Seal material EF - PTFE-seat-sealing + FKM
Material MS - brass
Port connection GM84 - G1/2 threaded port
Voltage 230 - 230 volts
Frequency 50 - 50 Hz
Power consumption 10 - 10 watt
Variable code 1 JH78 - Cable plug type 2518 (00361687), without wiring 3 poles, 0-250 V AC/DC, silicone seal
Variable code 2 KC74 - with mounting bracket
Pressure (bar) (max)10
Pressure (bar) (min) 0

HS Code 84818079
Country Of Origin: Germany
Nett Wt Each: 0.793KG

£176.00 (ex VAT)

£211.20 (inc VAT)

In stock
1-2 Weeks
089404V
Burkert Type 0255
Circuit function A - 2/2-ways; normally closed
Orifice size 04,0 - 4,0mm (5/32")
Seal material EF - PTFE-seat-sealing + FKM
Material MS - brass
Port connection GM84 - G1/2 threaded port
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 12 - 12 watt
Variable code 1 JH78 - Cable plug type 2518 (00361687), without wiring 3 poles, 0-250 V AC/DC, silicone seal
Variable code 2 KC74 - with mounting bracket
Pressure (bar) (max) 4
Pressure (bar) (min) 0

HS Code 84818079
Country Of Origin: Germany
Nett Wt Each: 0.758KG
Burkert Type 0255
Circuit function A - 2/2-ways; normally closed
Orifice size 04,0 - 4,0mm (5/32")
Seal material EF - PTFE-seat-sealing + FKM
Material MS - brass
Port connection GM84 - G1/2 threaded port
Voltage 024 - 24 volts
Frequency DC - DC
Power consumption 12 - 12 watt
Variable code 1 JH78 - Cable plug type 2518 (00361687), without wiring 3 poles, 0-250 V AC/DC, silicone seal
Variable code 2 KC74 - with mounting bracket
Pressure (bar) (max) 4
Pressure (bar) (min) 0

HS Code 84818079
Country Of Origin: Germany
Nett Wt Each: 0.758KG

£176.00 (ex VAT)

£211.20 (inc VAT)

Call to order Contact to order
