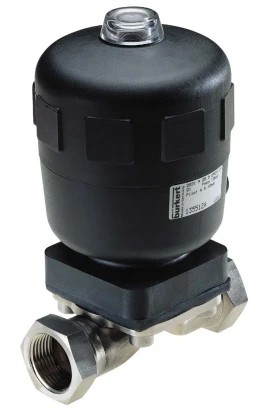

Burkert Type 2031 - 2/2 Way Process Valve Normally Closed

Burkert Type 2031 - 2/2 Way Process Valve Normally Closed
Download Manual Download Specification

Model Number: 2031

Contact to order Prices

The BURKERT TYPE 2031 externally piloted diaphragm valve is an alternative to ball valves. The diaphragm between the actuator and body hermetically isolates the fluid from the actuator.

  • Port size 1/4" - 2"
  • Pressure range 0-10 bar
  • Temperature media –10°C … + 140°C
  • Body material Stainless steel

View our full range of Burkert valves.

137670
Burkert Type 2031
Control function I - without compression spring
Paths/positions 2 - 2 ways / 2 position
Orifice size 20,0 - 20mm (3/4")
Seal material 00 - without seal or no explanation
Material 00 - without body or no explanation
Port connection 0000 - not applicable
Actuator version D - PPS-actuator, VA-threaded bushing at connection of pilot air
Actuator size F - Dm 80mm
Variable code 1 KC40 - Pressing piece for bayonet coupling
Variable code 2 PX51 - EPS 18 ATEX 2008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4...T2 Gb / Ex h IIIC T135°C...T300°C Db
STD (max) 7
STD (min) 2

HS Code 84819000
Country of Origin Germany
Net Weight 0.93KG
Burkert Type 2031
Control function I - without compression spring
Paths/positions 2 - 2 ways / 2 position
Orifice size 20,0 - 20mm (3/4")
Seal material 00 - without seal or no explanation
Material 00 - without body or no explanation
Port connection 0000 - not applicable
Actuator version D - PPS-actuator, VA-threaded bushing at connection of pilot air
Actuator size F - Dm 80mm
Variable code 1 KC40 - Pressing piece for bayonet coupling
Variable code 2 PX51 - EPS 18 ATEX 2008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4...T2 Gb / Ex h IIIC T135°C...T300°C Db
STD (max) 7
STD (min) 2

HS Code 84819000
Country of Origin Germany
Net Weight 0.93KG

£334.00 (ex VAT)

£400.80 (inc VAT)

Call to order Contact to order

Not sure which product you need?

Contact our technical sales advisors here.

Need a bespoke part?

Our team of engineers are fully equipped to provide bespoke system design and manufacture.

This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.
