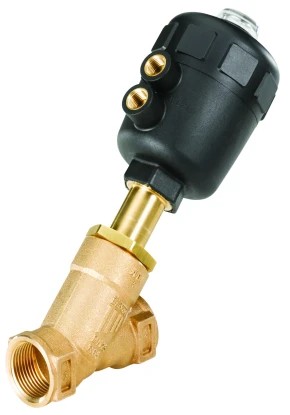

The Burkert Type 2000 externally piloted angle-seat valve is operated with a single or double-acting piston actuator. The actuator is available in two different materials, PA and PPS depending on the ambient temperature.
The reliable self adjusting packing gland provides high sealing integrity. High flow rates are attained with the gunmetal or cast stainless steel 2-way body. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
Some of the benefits of using the Burkert Type 2000 include:
High Flow Rate
Long Life Cycle
NC and NO universal actuators with modular universal accessory program up to control heads
Deliverable with flow direction below or above seat
Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 50,0 - 50mm (2")
Seal material EE - PTFE
Material VA - stainless steel
Port connection GM89 - G2 threaded port
Actuator version C - PA-actuator, VA-threaded bushing at connection of pilot air
Actuator size G - Dm 100mm
Variable code 1 PX51 - EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db
Pressure (bar) (min) 0
Pressure (bar) (max) 7,2
HS Code: 84818073
Country Of Origin: Germany
Nett Wt Each: 3.24KG
Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 50,0 - 50mm (2")
Seal material EE - PTFE
Material VA - stainless steel
Port connection GM89 - G2 threaded port
Actuator version C - PA-actuator, VA-threaded bushing at connection of pilot air
Actuator size G - Dm 100mm
Variable code 1 PX51 - EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db
Pressure (bar) (min) 0
Pressure (bar) (max) 7,2
HS Code: 84818073
Country Of Origin: Germany
Nett Wt Each: 3.24KG
Burkert Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 50,0 - 50mm (2")
Seal material EE - PTFE
Material RG - gunmetal
Port connection GM89 - G2 threaded port
Actuator version B - PA-actuator, MS-threaded bushing at connection of pilot air
Actuator size E - Dm 63mm
Variable code 1 MC13 - flow above seat
Variable code 2 MS74 - mounted with V-ANTR
Variable code 3 PX51 - EPS 18 ATEX 2008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4...T2 Gb / Ex h IIIC T135°C...T300°C Db
Pressure (bar) (max)16
Pressure (bar) (min) 0
HS Code: 84818071
Country Of Origin: Germany
Nett Wt Each: 3.22KG
Burkert Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 50,0 - 50mm (2")
Seal material EE - PTFE
Material RG - gunmetal
Port connection GM89 - G2 threaded port
Actuator version B - PA-actuator, MS-threaded bushing at connection of pilot air
Actuator size E - Dm 63mm
Variable code 1 MC13 - flow above seat
Variable code 2 MS74 - mounted with V-ANTR
Variable code 3 PX51 - EPS 18 ATEX 2008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4...T2 Gb / Ex h IIIC T135°C...T300°C Db
Pressure (bar) (max)16
Pressure (bar) (min) 0
HS Code: 84818071
Country Of Origin: Germany
Nett Wt Each: 3.22KG
Burkert Type 2000 Angle Seat Valve, 2/2 way closed by spring force, st/st body, PTFE seals, 2 way normally closed, max temp 180c, 3/4bsp ported, 0-16bar, short body version
Burkert Type 2000 Angle Seat Valve, 2/2 way normally closed function, Gunmetal Body, PTFE seals, 20mm Orifice, 3/4BSP, PA Actuator, Short Body, This part replaces 001131
Burkert Type 2000 Angle Seat Valve, 2/2 way closed by spring force, Gunmetal body, PTFE seals, 50mm PA actuator, 1/2BSP ported, Short body, This part replaces 001252
HS Code 84818071
Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 40,0 - 40mm (1 1/2")
Seal material EE - PTFE
Material VA - stainless steel
Port connection GM88 - G1 1/2 threaded port
Actuator version C - PA-actuator, VA-threaded bushing at connection of pilot air
Actuator size F - Dm 80mm
Variable code 1 MS74 - mounted with V-ANTR
Variable code 2 PX51 - EPS 18 ATEX 2008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4...T2 Gb / Ex h IIIC T135°C...T300°C Db
Pressure (bar) (min) 0
Pressure (bar) (max) 9
This part replaces 001139
HS Code: 84818073
Country Of Origin: Germany
Nett Wt Each: 3.14KG
Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 40,0 - 40mm (1 1/2")
Seal material EE - PTFE
Material VA - stainless steel
Port connection GM88 - G1 1/2 threaded port
Actuator version C - PA-actuator, VA-threaded bushing at connection of pilot air
Actuator size F - Dm 80mm
Variable code 1 MS74 - mounted with V-ANTR
Variable code 2 PX51 - EPS 18 ATEX 2008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4...T2 Gb / Ex h IIIC T135°C...T300°C Db
Pressure (bar) (min) 0
Pressure (bar) (max) 9
This part replaces 001139
HS Code: 84818073
Country Of Origin: Germany
Nett Wt Each: 3.14KG
Burkert Type 2000 Angle Seat Valve, 2/2 way normally closed function, Gunmetal Body, PTFE seals, 40mm Orifice, 1-1/2BSP, PA Actuator, Short Body
HS Code: 84818071
Country Of Origin: Germany
Nett Wt Each: 3.1KG
Burkert Type 2000 angle seat valve, 2/2 way closed by spring force, Gunmetal body, PTFE seals, 25mm orifice, 1BSP ported, 63mm PA actuator, Short body, Flow above seat, This part replaces 001248
HS Code 84818071
Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 25,0 - 25mm (1")
Seal material EE - PTFE
Material VA - stainless steel
Port connection GM86 - G 1 threaded port
Actuator version C - PA-actuator, VA-threaded bushing at connection of pilot air
Actuator size F - Dm 80mm
Variable code 1 MS74 - mounted with V-ANTR
Variable code 2 PX51 - EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db
Pressure (bar) (min) 0
Pressure (bar) (max) 25
HS Code: 84818073
Country Of Origin: Germany
Nett Wt Each: 2.34KG
Type 2000
Control function A - closed by spring force
Paths/positions 2 - 2 ways / 2 position
Orifice size 25,0 - 25mm (1")
Seal material EE - PTFE
Material VA - stainless steel
Port connection GM86 - G 1 threaded port
Actuator version C - PA-actuator, VA-threaded bushing at connection of pilot air
Actuator size F - Dm 80mm
Variable code 1 MS74 - mounted with V-ANTR
Variable code 2 PX51 - EPS 18 ATEX 2 008 X / IECEx EPS 18.0007 X mech. Ex h IIC T4 Gb / Ex h IIIC T135°C Db
Pressure (bar) (min) 0
Pressure (bar) (max) 25
HS Code: 84818073
Country Of Origin: Germany
Nett Wt Each: 2.34KG
Burkert Type 2000 Angle Seat Valve, 2/2 way normally closed function, Gunmetal Body, PTFE seals, 25mm Orifice, 1"BSP, PA Actuator, Short Body, This part replaces 007225
solenoid control valve ref 236924. Type TYP_0009 2875 2875 Circuit function WW A 2/2-ways; normally closed Orifice size DN 08,0 8,0mm (5/16") Seal material DWST FF FKM Body material WKST VA stainless steel Port connection LTA GM84 G1/2 threaded port Voltage SP 024 24 volts DC 16watt
