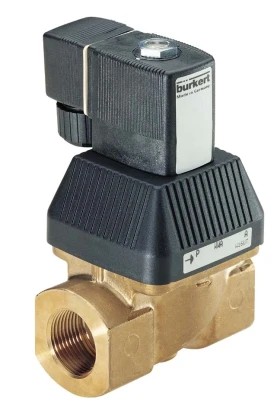

The BURKERT 6213 2/2 brass or stainless steel solenoid valves are servo-assisted. All valves operate from zero pressure. For more difficult and slightly aggressive fluids.

  • Port size 1/4" - 2"
  • Pressure range 0-10 bar (Min 0.1 bar for full opening)
  • Temperature media ranges covering –30°C to +120°C
  • Body material Brass or Stainless Steel
  • Seal material NBR, FKM, EPDM
  • Options - Explosion protection Ex to Eurostanda
  • The standard brass housing satisfies all European drinking water requirements, WRAS Approved Materials on request
1"bsp brass solenoid valve with viton diaphragm 2 way Normally closed 24vdc, 0.2-10bar

£183.39 (ex VAT)

£220.07 (inc VAT)

In stock
1-2 Days
Type 6213 Solenoid Valve, 2/2 Way Normally Closed, 10mm Orifice Size, NBR Seals, Brass Body, 1/2" BSP Ported, 24VDC

£90.10 (ex VAT)

£108.12 (inc VAT)

Type 6213 solenoid valve 1" bsp 2/2 Normally closed Brass body Viton seals, 230vAC, 0-10bar.

HS Code: 8481 8079

£181.89 (ex VAT)

£218.27 (inc VAT)

Burkert Type 6213
Generation EV -
Circuit function A - 2/2-ways; normally closed
Orifice size 13,0 - 13mm (1/2")
Seal material FF - FKM
Material VA - stainless steel
Port connection GM84 - G1/2 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 NA38 - Coil material insulation class H
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.55KG
Burkert Type 6213
Generation EV -
Circuit function A - 2/2-ways; normally closed
Orifice size 13,0 - 13mm (1/2")
Seal material FF - FKM
Material VA - stainless steel
Port connection GM84 - G1/2 threaded port
Coil size 5 - 32 mm
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 NA38 - Coil material insulation class H
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code: 84818079
Country Of Origin: Germany
Nett Wt Each: 0.55KG

£219.00 (ex VAT)

£262.80 (inc VAT)

Servo-assisted solenoid valve system. All valves operate from zero pressure. For more difficult and slightly aggressive fluids.
• Port size 1/4” - 2”
• Pressure range 0-10 bar (Min 0.1 bar for full opening)
• Temperature media ranges covering –30°C to +120°C
• Body material Brass or Stainless Steel
• Seal material NBR, FKM, EPDM
• Options - Explosion protection Ex to Eurostanda



Servo-assisted solenoid valve system. All valves operate from zero pressure. For more difficult and slightly aggressive fluids.
• Port size 1/4” - 2”
• Pressure range 0-10 bar (Min 0.1 bar for full opening)
• Temperature media ranges covering –30°C to +120°C
• Body material Brass or Stainless Steel
• Seal material NBR, FKM, EPDM
• Options - Explosion protection Ex to Eurostanda



£90.40 (ex VAT)

£108.48 (inc VAT)
