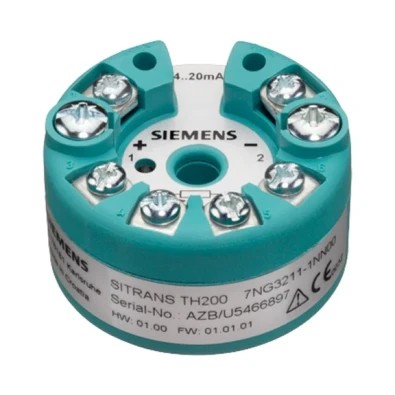

Siemens Th200 - In Head Temperature Transmitter

Siemens Th200 - In Head Temperature Transmitter
Download Specification

Model Number: TH200

Contact to order Prices

SITRANS TH200 is designed to support all common RTDs, thermocouples, resistance and millivolt-sensors. Setup is quick and easy with the transmitter-modem and SIPROM T software. This configuration tool can be downloaded free. Unique user-friendly details are implemented: Without opening the 4-..20mA loop, the output current can read directly with a multimeter. A red/green LED shows the status at a glance.

  • Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources
  • Output: 4-20mA
  • Measures temperature with a linear output signal
  • high accuracy across the entire ambient temperature range
  • reduces plant noise
  • Alarm signal for sensor break or short-circuit according NAMUR 43
  • Electromagnetic compatibility (EMC) according to DIN EN 61326 and NE21
  • Saves expensive compensation cables with the internal reference junction
  • Galvanic insulation for accuracy and safety in thermocouple applications
  • Single- or dual-point trim
  • Custom characteristic curve for application of non-standard sensors
  • Difference - and average - measurement
  • Explosion protected executions for US, Canada and Europe
  • Rugged design, fully potted electronics
7NG3211-0NN00
Temperature transmitter SITRANS TH100 for PT100 for installation in connection head Type B (DIN 43729), two-wire system, 4...20 mA, programmable, without electrical isolation, Without explosion protection.

£53.44 (ex VAT)

£64.13 (inc VAT)

Call to order Contact to order
