Midland Acs Model 1500 - Stainless Steel Spool Valve

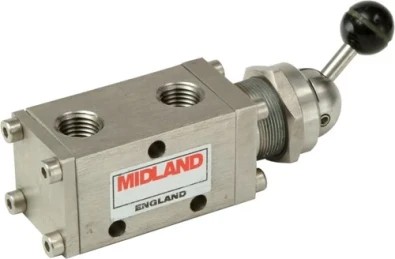

Midland Acs Model 1500 - Stainless Steel Spool Valve

Model Number: 1500

Contact to order Prices

The Midland ACS Model 1500 is a range of compact 3/2 and 5/2 pilot solenoid operated spool valves in Stainless Steel for use on gases.

Some features and benefits of the Midland 1500 are:

  • Lightweight design
  • Closed Centre
  • Hazardous area solenoids
  • Working pressure: single valve - 3 to 12 bar, double valve
  • Maximum flow: 6.3 bar
  • Hazardous area solenoids
  • Coil with 316 or aluminium housing
  • Atex Certification
  • CENELEC approvals
  • 1/4"NPT (BSP option available)
2326M21-VR1B
Midland Pilot Operated Spool Valve, 316 Stainless Steel, 1/4" BSP Ports, 3/2 Pilot operated/Spring Return, Working Pressure 12 bar, Fluroelastomer seals, Cv 1.0. HS Code: 8481 2090

£190.19 (ex VAT)

£228.23 (inc VAT)

Call to order Contact to order
2326M21-VR2B
Midland Pilot Operated Spool Valve, 316 Stainless Steel, 1/4" NPT Ports, 3/2 Pilot operated/Spring Return, Working Pressure 12 bar, Fluroelastomer seals, Cv 1.0.
Net Weight Per Unit: 0.5 Kgs
HS Code: 8481 209000

£167.52 (ex VAT)

£201.02 (inc VAT)

Call to order Contact to order
2326M21-VR5B
Midland Pilot Operated Spool Valve, 316 Stainless Steel, Manifold Mounted, 3/2 Pilot operated/Spring Return, Working Pressure 12 bar, Fluroelastomer seals, Cv 1.0. HS Code: 8481 2090

£187.28 (ex VAT)

£224.74 (inc VAT)

Call to order Contact to order
2326M23-VR2BKD
3/2 N.C. Solenoid valves, EEX-D IIC, 24VDC, 316SS, 1/4", SOLENOID SPRING RETURN, 3/2 N/C, ST/ST SOLENOID VALVE 24VDC. HS Code: 8481 209000

£467.70 (ex VAT)

£561.24 (inc VAT)

Call to order Contact to order
2326M27-VR2B
Stainless Steel Construction, Viton Seals, 1/4"NPT Ports, 3/2 Way, 12bar Max Working Pressure, Cv: 1, Pad Operated & Spring Return. HS Code: 8481 209000

£206.02 (ex VAT)

£247.22 (inc VAT)

Call to order Contact to order
2526M21-ER2B
Midland Pilot Operated Spool Valve, 316 Stainless Steel, 1/4" NPT ports, 5/2 Pilot operated/Spring Return, Working pressure 12 bar, Fluroelastomer seals. Cv 1.2. HS Code: 8481 2090

£356.63 (ex VAT)

£427.96 (inc VAT)

Call to order Contact to order
2526M21-VR2B
Midland Pilot Operated Spool Valve, 316 Stainless Steel, 1/4" NPT ports, 5/2 Pilot operated/Spring Return, Working pressure 12 bar, Fluroelastomer seals. Cv 1.2. HS Code: 8481 209000

£325.68 (ex VAT)

£390.82 (inc VAT)

Call to order Contact to order
2526M2R-VR2B
Midland Manually Operated Spool Valve, 316 Stainless Steel, 1/4" NPT ports, 5/2 Key operated/Spring Return, Working pressure 10 bar, Fluroelastomer seals. Cv 1.2. HS Code: 8481 2090

£573.35 (ex VAT)

£688.02 (inc VAT)

Call to order Contact to order
