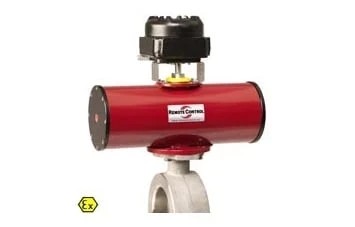

Rotork Rcc200 - Pneumatic Quarter-Turn Actuator For Demanding Applications

The Remote Control RCC200 Pneumatic Quarter Turn Actuator is designed for offshore, petrochemical and other industrial hard conditions where aluminium cannot be accepted. Available as single or double acting and up to 900 Nm (7,965 lbf.in).

Features and benefits of the Remote Control RCC200 include:

• For On-Off and modulating
• Compact design
• For applications where aluminium cannot be accepted
• Double-acting or spring-return
• Pre-tensioned springs for safety
• Connection according to DIN3337/ISO5211 to valve
• Scotch yoke principle gives high torque in the end positions
• High reliability, long life, one-year warranty
• Epoxy coated steel housing. PTFE treated cylinder
• Drive shaft and screws in stainless steel
• Temperature range -20°C to +80°C

Options: Manual override M1, customer specified paint, quick acting, speed restrictor, low temperature, high temperature, oil hydraulics.
