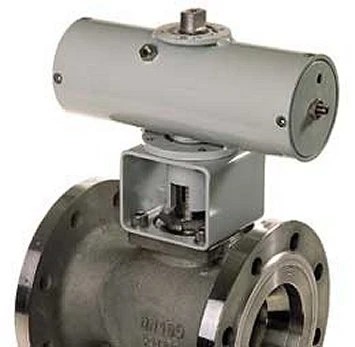

Rotork Rcc200-Firesafe Pneumatic Quarter-Turn Actuator

Model Number: RCC200-Firesafe

Designed for demanding applications the Rotork RCC200 Firesafe Actuator range is ideal for applications, where an extreme heat resistant actuator is required. The RCC200 is suitable for temperature range up to 1000c for up to 1 hour or continuous duty at up to 150 °C ambient temperatures. With a high temperature rating of up to 1000c it provides shortly protecting in the event of a fire and is ideal for safety critical systems.

Key features of the RCC200 pneumatic actuator firesafe range include:

  • For On-Off and modulating
  • Compact design
  • Single-acting actuators with spring-return
  • "Firesafe" design for applications with extreme demands on function and safety
  • Pre-tensioned springs for safety
  • Connection to valves in accordance with DIN3337/ISO5211
  • Scotch yoke design provides high torque in the end positions
  • High reliability, long life, one year warranty
  • High efficiency, low air consumption
  • Epoxy coated steel housing. PTFE treated cylinder. Steel pistons
  • Temperature range: 0°C to +150°C plus +1000°C for up to 1 hour
