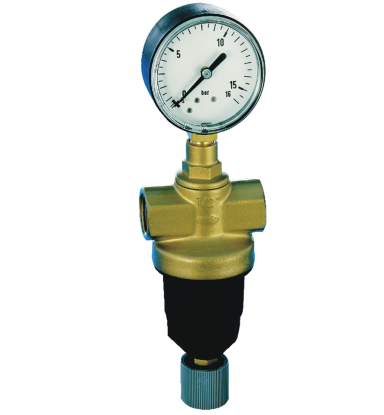

Resideo Braukmann D22 Pressure Reducing Valve

Resideo Braukmann D22 Pressure Reducing Valve
Download Specification

Model Number: D22

Contact to order Prices

The Resideo Braukmann Type D22 protects installations against excessive pressure from the supply. They can be used for industrial or commercial applications within the range of their specification. As pressure reducing valves are subject to wear, they cannot be used as the only means of protection and if the downstream system needs to be protected against excessive pressure to prevent leakage, then a suitable safety valve must be fitted.

Some features and benefits of the Resideo D22 are:

  • Approvals Certified to Pressure Equipment Directive 97/23/EC, Ref No. CE 0035
  • Media: Compressed air, non-toxic and non-flammable gases
  • Body material: brass
  • Spring bonnet material: synthetic material
  • Port connection type: internal threads
  • Max. media temperature: 70 oC
  • Static pressure: PN40
  • Pressure setpoint range: 1 to 10 bar
  • Inlet pressure balancing – no influence on outlet pressure by fluctuating inlet pressure
  • Screw with knob for setting pressure
  • The adjustment spring is not in contact with the medium
  • Compact construction

D22-1/2A
Brass body,
NBR diaphragm,
G1/2" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£81.18 (ex VAT)

£97.42 (inc VAT)

In stock
2-3 Days
D22-1/4A
Brass body,
NBR diaphragm,
G1/4" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£66.95 (ex VAT)

£80.34 (inc VAT)

In stock
2-3 Days
D22-11/2A
Brass body,
NBR diaphragm,
G1.1/2" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£407.68 (ex VAT)

£489.21 (inc VAT)

In stock
Only 1 in stock
2-3 Days
D22-11/4A
Brass body,
NBR diaphragm,
G1.1/4" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£271.75 (ex VAT)

£326.10 (inc VAT)

Call to order Contact to order
D22-1A
Brass body,
NBR diaphragm,
G1" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£189.46 (ex VAT)

£227.35 (inc VAT)

In stock
2-3 Days
D22-2A
Brass body,
NBR diaphragm,
G2" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£484.12 (ex VAT)

£580.94 (inc VAT)

Call to order Contact to order
D22-3/4A
Brass body,
NBR diaphragm,
G3/4" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£119.85 (ex VAT)

£143.82 (inc VAT)

In stock
2-3 Days
D22-3/8A
Brass body,
NBR diaphragm,
G3/8" ported,
Max inlet pressure 40Bar,
Outlet pressure 1-10Bar,
G1/4" Gauge port,
Suitable for compressed air,
Non toxic & Non flammable gases.

HS Code: 84811099
Country Of Origin: Germany

£66.95 (ex VAT)

£80.34 (inc VAT)

Call to order Contact to order
