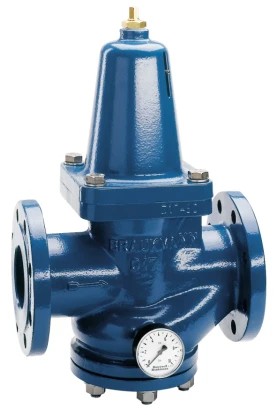

Model Number: D17P

Discontinued

Pressure reducing valves of this Resideo Braukmann type D17P protect installations against excessive pressure from the supply. They can be used for household, industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

  • Media: Water, compressed air and nitrogen
  • Body material: spherulitic cast iron GGG40
  • Spring bonnet material: metal
  • Body finishing: powder coating
  • Port connection type: flanges
  • Max. media temperature: 70 oC
  • Static pressure: PN25
