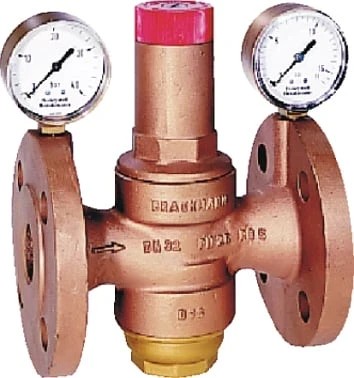

Model Number: D16

Pressure reducing valves of this type (HONEYWELL D16) protect installations against excessive pressure from the supply. They can be used for household, industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

  • Media: Water, compressed air and nitrogen
  • Body material: red bronze RG5
  • Spring bonnet material: metal
  • Port connection type: flanges
  • Max. media temperature: 70 oC
  • Static pressure: PN25
  • Integral filter: 0,5 mm
  • Pressure setpoint range: 1,5 ... 12 bar
Resideo D16-40A Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-12 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 65 °C
Material: EPDM Diaphragm & Seal, Bronze Body, Brass
Port size: 40mm flanged PN25
Gauge port size: 1/4" BSPP
Suitable for compressed air, Non toxic & Non flammable gases

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 9.5KG

£1,744.22 (ex VAT)

£2,093.06 (inc VAT)

Not sure which product you need?

Contact our technical sales advisors here.

Need a bespoke part?

Our team of engineers are fully equipped to provide bespoke system design and manufacture.

This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.

Call our technical sales team for advice

helpdesk technician
