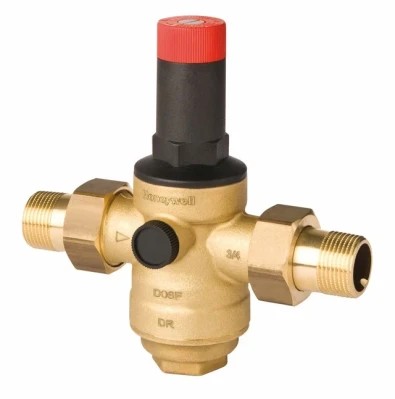

Model Number: D06FH

Pressure reducing valves of this type  Resideo Braukmann D06FH protect installations against excessive pressure from the supply. They can be used for household, industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

  • Media: Water, compressed air and nitrogen
  • Body material: brass, dezincification resistant
  • Spring bonnet material: synthetic material
  • Port connection type: external threads
  • Max. media temperature: 60 oC
  • Static pressure: PN25
  • Integral filter: 0,16 mm
  • Pressure setpoint range: 1,5 ... 12 bar
Resideo D06FH-1/2B Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-12 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 1/2" BSPP male connections
Gauge port size: 1/4" BSPP

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 0.8KG

£132.12 (ex VAT)

£158.54 (inc VAT)

Resideo D06F-11/2B Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-12 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Brass Body, Brass Filter bowl
Port size: 1 1/2" BSPP male connections
Gauge port size: 1/4" BSPP

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 3.4KG

£518.11 (ex VAT)

£621.73 (inc VAT)
