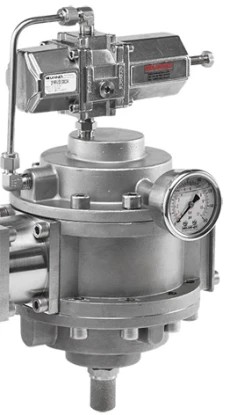

Midland Acs Model 3575 - Stainless Steel Pressure Regulator

Model Number: 3575

The Midland ACS Model 3575 316 Stainless Steel pressure regulator unit for the pressure regulation of compressed air for offshore and allied industries. Self relieving with large flow characteristics.

  • Ambient Temperature Range
  • Standard: -20ºC to +80ºC (-4ºF to +176ºF)
  • Low Temp: -50ºC (-58ºF) (optional)
  • Maximum Relief Flow At 2 bar (29psi) secondary pressure 0.5cc/sec (0.03 cu in/sec)
  • Maximum Inlet Pressure 20 bar (290 psi)
  • Ports NPT (BSP option available) 2", 1½"
  • Relief Vent Port 1/8" NPT (Fitted with bug screen)
  • Ingress Protection IP65 when fitted with optional vent port filter
  • Maximum Flow
  • 6 bar (87 psi), 1 bar (14.5 psi) differential
  • 2" - 45000 L/Min (1590 SCFM)
