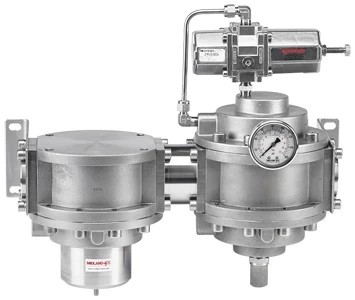

Midland Acs Model 3575 - Stainless Steel Filter Regulator

Model Number: 3575


MIDLAND ACS MODEL 3575 - STAINLESS STEEL FILTER REGULATOR A 316 Stainless Steel combined unit for filtration and regulation of compressed air in the offshore and allied industries. Self-relieving, manual or auto drain, 25-micron element.

• Ports 2”, 1½” NPT
• Relief Port ½” NPT (Fitted with bug screen)
• Ingress Protection IP65 when fitted with optional vent port filter
• Ambient Temperature Range
• Standard: -20ºC to +80ºC (-4ºF to +176ºF)
• Low Temp: -50ºC (-58ºF) (optional)
• Maximum Relief Flow At 2 bar (29psi) secondary pressure 0.5cc/sec (0.03 cu in/sec)
• Maximum Inlet Pressure 20 bar (290 psi)
