Fairchild Model 70B - Precision Pressure Regulator

Model Number: 70B

The Model 70B controls a pressure signal for pneumatic instrumentation. This regulator is ideally suited for applications with limited space. Repeatability within 0.06 PSIG dead-ended allows accurate set-point control. The small size allows installation in restrictive spaces.

Supply Pressure 250 PSIG Maximum & 50 PSIG Minimum
Flow Capacity 2.5 SCFM @ 100 PSIG supply and 30 PSIG set-point
Adjustment range 0-5 PSIG to 2-100 PSIG
1/6" NPT Ports or M5 x 0.8 Threaded

70240

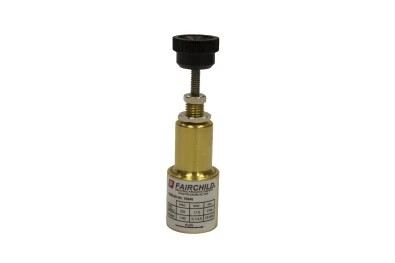

Fairchild model 70 miniature pressure regulator, brass body, max inlet 250psi, outlet range 1-60psi, 1/16th npt ported. HS Code:9032 810080

£120.49 (ex VAT)

£144.59 (inc VAT)

In stock

6-8 Weeks

70250

Fairchild model 70 miniature pressure regulator, brass body, max inlet 250psi, outlet range 2-100psi, 1/16th npt ported

£120.49 (ex VAT)

£144.59 (inc VAT)

In stock

6-8 Weeks

70250R

Fairchild model 70 miniature pressure regulator, brass body, max inlet 250psi, outlet range 2-100psi, 1/16th npt ported Plunger operated

£250.29 (ex VAT)

£300.35 (inc VAT)

In stock

6-8 Weeks
