Model Number: 200

The Model 200 Pneumatic Volume Booster reproduces a pneumatic signal in a 1:1 ratio. It is ideally suited for systems that require input isolation or increased forward flow capacity.

  • Supply Pressure 250 PSIG Maximum
  • Output Pressure 150 PSIG Maximum
  • Flow Capacity (SCFM) 830 @100 PSIG, 20 set point
  • Sensitivity 1" Water Column
  • Pipe Size 1" NPT - 1 1/2" NPT

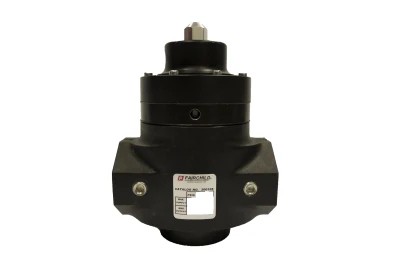

Fairchild Model 200 Pneumatic Volume Booster.
Maximum Supply Pressure: 250 psi.
Maximum Signal Pressure: 150 psi.
Maximum Output Pressure: 150 psi.
Input/Output Ratio: 1:1.
Material: Alloy Body, Nitrile elastomers.
Port Size: 1.5" NPT.

HS Code: 9032 810080.
Country of Origin: USA.
Net Weight: 3kg.

£1,600.94 (ex VAT)

£1,921.13 (inc VAT)
