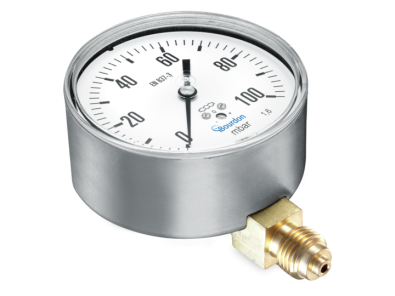

Nominal size: 63 mm
Case material: Stainless steel 1.4301 / AISI 304
Bezel ring material: Stainless steel 1.4301 / AISI 304 for mounting type G
Window material: Polycarbonate, snap-fitted into the case
Protection rating (EN 60529): IP33 for mounting type D/IP44 for mounting type B-F-G
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Brass
Wetted parts: Process connection material: Brass
Capsule: Bronze / Brass
Performance: Accuracy according to EN 837-3 Class 1.6
Min. measuring range 0 ... 60 mbar / Max. measuring range 0 ... 600 mbar
