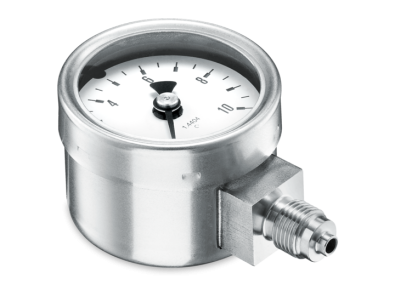

Bourdon

Model Number: MMX1

Nominal size: 40 mm
Case material: Stainless steel 1.4301 / AISI 304
Bezel ring material: Stainless steel 1.4301 / AISI 304
Window material: Polycarbonate
Window gasket: Elastomer
Protection rating (EN 60529): IP33 for mounting type D / IP43 for mounting type F
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Stainless steel
Wetted parts: Process connection material Stainless steel 1.4571 / AISI 316Ti
Bourdon tube: Stainless steel 1.4571 / AISI 316Ti Performance
Accuracy according to EN 837-1 Class 2.5
Min. measuring range 0 ... 1.6 bar / Max. measuring range 0 ... 25 bar
Approval / Conformities ATEX Ex II 2 GDc-IM2c
