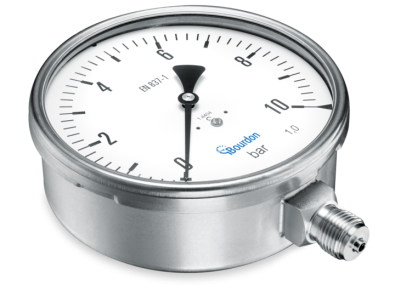

Nominal size: 150 mm
Case material: Stainless steel 1.4301 / AISI 304 (316L optional)
Bezel ring material: Stainless steel 1.4301 / AISI 304 (316L optional)
Window material: Instrument glass
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Stainless steel
Safety according to EN 837-1: S1 Pressure gauge with blow-out device
Wetted parts: Process connection material: Monel 400
Bourdon tube: Monel 400
Performance: Accuracy according to EN 837-1 Class 1
Min. measuring range 0 ... 0.6 bar / Max. measuring range 0 ... 600 bar
Approval / Conformities ATEX Ex II 2 GDc-IM2c
Contact our technical sales advisors here.
Our team of engineers are fully equipped to provide bespoke system design and manufacture.
This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.
Call our technical sales team for advice
