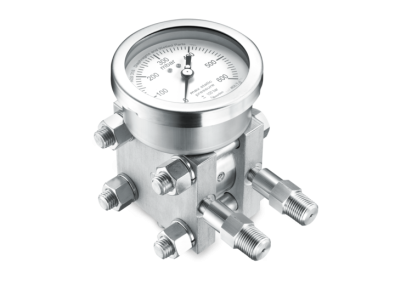

Nominal size: 150 mm
Case material: Stainless steel 1.4301 / AISI 304 (316L optional)
Bezel ring material: Stainless steel 1.4301 / AISI 304 (316L optional)
Window material: Laminated safety glass
Window gasket: Elastomer
Protection rating (EN 60529): IP67
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Stainless steel
Option: Case with solid-front
Bolts and nuts (Stainless steel 1.4301 / AISI 304)
Static pressure 25 bar (Low pressure type)
Static pressure 100/250 bar (High pressure type)
Bolts and nuts (Galvanized steel)
Static pressure 100 bar (Low pressure type)
Static pressure 400 bar (High pressure type)
Wetted parts: Process connection G1/2" / 1/2" NPT / 1/2" NPT female / 1/4" NPT female
Process connection material: Stainless steel 1.4404 / AISI 316L / Monel 400 / Hastelloy C276
Differential cell: Stainless steel 1.4301 / AISI 304 / Monel 400 / Hastelloy C276
Cell gasket: NBR
Performance: Accuracy Class 1 / Class 1.6
Min. measuring range 0 ... 25 mbar / Max. measuring range 0 ... 25 bar
