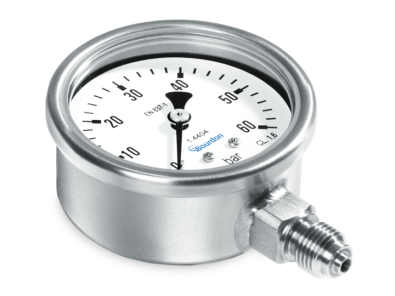

Nominal size: 63 mm
Case material: Stainless steel 1.4301 / AISI 304
Type of housing: Crimped bezel (option 0133 mandatory)
Bezel ring material: Stainless steel 1.4301 / AISI 304
Window material: Polycarbonate
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Stainless steel
Safety according to EN 837-1: S1, with window polycarbonate or Laminated safety glass
Wetted parts: Process connection material Stainless steel 1.4404 / AISI 316L
Bourdon tube: Stainless steel 1.4404 / AISI 316L
Performance: Accuracy according to EN 837-1 Class 1.6
Min. measuring range 0 ... 1 bar / Max. measuring range 0 ... 400 bar
Approval / Conformities ATEX Ex II 2 GDc-IM2c
