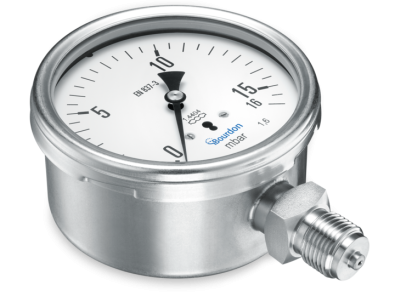

BOURDON MCX5 - CAPSULE PRESSURE GAUGE

BOURDON MCX5 - CAPSULE PRESSURE GAUGE
Download Manual Download Specification

Bourdon

Model Number: MCX5

Contact to order Prices

Nominal size: 100 mm
Case material: Stainless steel 1.4301 / AISI 304 (316L optional)
Bezel ring material: Stainless steel 1.4301 / AISI 304 (316L optional)
Window material: Instrument glass
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Brass
Wetted parts: Process connection material: Stainless steel 1.4404 / AISI 316L
Capsule: Stainless steel 1.4404 / AISI 316L
Performance: Accuracy according to EN 837-3 Class 1.6
Min. measuring range 0 ... 16 mbar / Max. measuring range 0 ... 600 mbar
Approval / Conformities ATEX Ex II 2 GDc-IM2c

MCX5-D30.N07
Material code: 10272768
Nominal size: 100 mm
Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection
Process connection: G1/2"
Oil filling: No oil filling
Pressure unit: mbar (EN standard)
Pressure range: 0 ... 60 mbar
Country of origin: France
HS Code: 90262040

£334.62 (ex VAT)

£401.54 (inc VAT)

Pre-order
Call to order Contact to order
MCX5-D30.N08
Material code: 10272772
Nominal size: 100 mm
Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection
Process connection: G1/2"
Oil filling: No oil filling
Pressure unit: mbar (EN standard)
Pressure range: 0 ... 100 mbar
Country of origin: France
HS Code: 90262040

£326.71 (ex VAT)

£392.05 (inc VAT)

Pre-order
Call to order Contact to order
MCX5-D30.N09
Material code: 10272776
Nominal size: 100 mm
Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection
Process connection: G1/2"
Oil filling: No oil filling
Pressure unit: mbar (EN standard)
Pressure range: 0 ... 160 mbar
Country of origin: France
HS Code: 90262040

£326.71 (ex VAT)

£392.05 (inc VAT)

Pre-order
Call to order Contact to order
MCX5-D30.N10

Material code: 10272778 Nominal size: 100 mm Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection Process connection: G1/2" Oil filling: No oil filling Pressure unit: mbar (EN standard) Pressure range: 0 ... 250 mbar# Country of Origin: France HS Code: 90262040

£326.71 (ex VAT)

£392.05 (inc VAT)

Pre-order
7-10 Days
MCX5-D30.N11
Material code: 10272782
Nominal size: 100 mm
Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection
Process connection: G1/2"
Oil filling: No oil filling
Pressure unit: mbar (EN standard)
Pressure range: 0 ... 400 mbar
Country of Origin: France
HS Code: 90262040

£337.80 (ex VAT)

£405.36 (inc VAT)

Pre-order
Call to order Contact to order
MCX5-D30.N56
Material code: 10272796
Nominal size: 100 mm
Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection
Process connection: G1/2"
Oil filling: No oil filling
Pressure unit: mbar (EN standard)
Pressure range: -250 ... 0 mbar
Country of Origin: France
HS Code: 90262040

£373.47 (ex VAT)

£448.16 (inc VAT)

Pre-order
Call to order Contact to order
MCX5-D30.N62
Material code: 10272801
Nominal size: 100 mm
Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection
Process connection: G1/2"
Oil filling: No oil filling
Pressure unit: mbar (EN standard)
Pressure range: -10 ... 16 mbar
HS Code: 90262040
Countr of Origin: France

£380.87 (ex VAT)

£457.04 (inc VAT)

Pre-order
Call to order Contact to order
MCX5-D30.N68
old Code / SAP code: 10272812
Nominal size: 100 mm
Type of mounting: Case and bezel ring AISI 304 (1.4301), stainless steel, Bottom connection
Process connection: G1/2"
Oil filling: No oil filling
Pressure unit: mbar (EN standard)
Pressure range: -160 ... 250 mbar
Country of Origin: France
HS Code: 90262040

£383.19 (ex VAT)

£459.83 (inc VAT)

Pre-order
Call to order Contact to order
