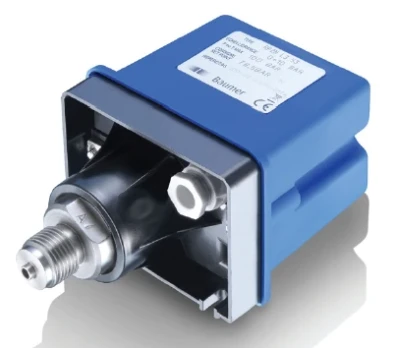

BOURDON BAUMER RP2N COMPACT PRESSURE SWITCH

Call to order Contact to order

Download Manual Download Specification

Model Number: RP2N

The BOURDON (BAUMER GROUP) RP2E is for overpressure monitoring of aggressive liquids and gaseous media.

Kind of pressure: overpressure, relative
Pressure connection: G1/2 male, 1/2 NPT male, 1/4 NPT female ,1/2 NPT female
Electrical connection: Via internal terminal block with cable gland for Ø 5.5 to 8.5 mm
Protection class: IP66
Housing material: Zamak black painting
Temperature - Process: -40 ... +150 °C, Ambient: -30 ... +70 °C, Storage: -40 ... +70 °C
Switch: function/capacity SPDT Microswitch 6vDC - 250vAC
Pressure ranges: from/up to 0 to 100 BAR
Excellent repeatability
Dead band adjustment for regulation
Fix dead band for control and alarm
Resistant to accidental overpressure
Light weight
