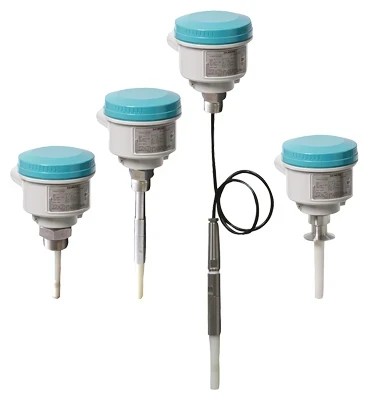

Siemens Milltronics Pointek Cls 200 - Capacitance Level Switch

Siemens Milltronics Pointek Cls 200 - Capacitance Level Switch
Download Specification

Model Number: CLS 200

Contact to order Prices

The Pointek CLS 200 capacitance Level Switch is an inverse frequency shift capacitance switch with a high level of chemical resistance. It is ideal for level detection of interfaces, solids, liquids, slurries and foam and for simple pump control. It is offered in analogue and digital versions.

  • Accuracy 1%
  • Safe or hazardous area duty
  • Liquids, solids or slurries
  • Max temperature 125°C
  • Capacitance Level Switch
7ML56301AA000DB0
SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch, for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT). Special version: (the thread length includes the process thread): Compact (Thread 120 mm (4.72"). Without thermal isolator. Seals on process side: FKM. Material of the probe: Stainless steel Mat. No. 1.4404/316L. With PPS probe. Approvals: Flameproof enclosure with intrinsically safe (IS) probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T4, ATEX II 1/2 D T100 C. Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 .7ML5630-1AA00-0DB0

SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch, for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT). Special version: (the thread length includes the process thread): Compact (Thread 120 mm (4.72"). Without thermal isolator. Seals on process side: FKM. Material of the probe: Stainless steel Mat. No. 1.4404/316L. With PPS probe. Approvals: Flameproof enclosure with intrinsically safe (IS) probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T4, ATEX II 1/2 D T100 C. Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 .7ML5630-1AA00-0DB0

£705.60 (ex VAT)

£846.72 (inc VAT)

Call to order Contact to order
7ML56301AA000JB0
SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch. for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT), EN 10226/PT (JIS-T), JIS B 0203). Special version: (the thread length includes the process thread): Compact (Thread 120 mm (4.72"). Without thermal isolator. Seals on process side: FKM Material of the probe: Stainless steel Mat. No. 1.4404/316L With PPS probe Approvals: General use (CE, C-TICK) Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 .
7ML5630-1AA00-0JB0
SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch. for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT), EN 10226/PT (JIS-T), JIS B 0203). Special version: (the thread length includes the process thread): Compact (Thread 120 mm (4.72"). Without thermal isolator. Seals on process side: FKM Material of the probe: Stainless steel Mat. No. 1.4404/316L With PPS probe Approvals: General use (CE, C-TICK) Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 .
7ML5630-1AA00-0JB0

£559.80 (ex VAT)

£671.76 (inc VAT)

Call to order Contact to order
7ML56301AE000DB0
SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch, for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT). Special version: (the thread length includes the process thread): Rod extension, 750 mm (29.53"). Without thermal isolator. Seals on process side: FKM. Material of the probe: Stainless steel Mat. No. 1.4404/316L. With PPS probe. Approvals: Flameproof enclosure with intrinsically safe (IS) probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T4, ATEX II 1/2 D T100 C. Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 .7ML5630-1AA00-0DB0

SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch, for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT). Special version: (the thread length includes the process thread): Rod extension, 750 mm (29.53"). Without thermal isolator. Seals on process side: FKM. Material of the probe: Stainless steel Mat. No. 1.4404/316L. With PPS probe. Approvals: Flameproof enclosure with intrinsically safe (IS) probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T4, ATEX II 1/2 D T100 C. Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 .7ML5630-1AA00-0DB0

£919.80 (ex VAT)

£1,103.76 (inc VAT)

Call to order Contact to order
7ML56301AE000JB0
SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch, for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT), Special version: (the thread length includes the process thread): Rod extension, 750 mm (29.53"). Without thermal isolator. Seals on process side: FKM. Material of the probe: Stainless steel Mat. No. 1.4404/316L. With PPS probe. Approvals: General use (CE, C-TICK). Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 7ML5630-1AE00-0JB0
SIEMENS Pointek CLS200 - Standard - Rod Version with Threaded process connection: Versatile inverse frequency shift capacitance level switch, for detection of liquids, solids,slurries, foam and interfaces. Process connection: Thread, stainless steel steel mat. no 1.4404/316L R 3/4" ((BSPT), Special version: (the thread length includes the process thread): Rod extension, 750 mm (29.53"). Without thermal isolator. Seals on process side: FKM. Material of the probe: Stainless steel Mat. No. 1.4404/316L. With PPS probe. Approvals: General use (CE, C-TICK). Housing and cover: Aluminum epoxy coated, 2 x M20 x 1.5 cable entry, IP65 7ML5630-1AE00-0JB0

£794.70 (ex VAT)

£953.64 (inc VAT)

Call to order Contact to order
