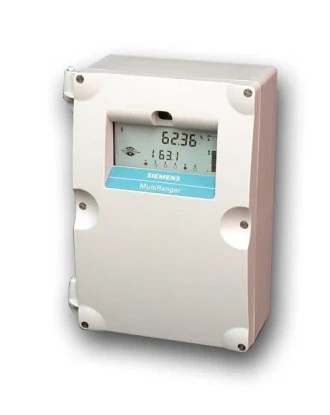

Siemens Milltronics Multiranger 100/200 - Ultrasonic Level Transmitter

Siemens Milltronics Multiranger 100/200 - Ultrasonic Level Transmitter
Download Specification

Model Number: MULTIRANGER 100 200

Discontinued
Contact to order Prices

MultiRanger Ultrasonic Level Transmitter is a versatile short to medium-range ultrasonic single and multi-vessel level monitor/controller for virtually any application in a wide range of industries.

  • Single or dual point level monitoring
  • Auto False-Echo Suppression for fixed obstruction avoidance
  • Differential amplifier transceiver for mode noise reduction and improved signal-to-noise ratio
  • MultiRanger 100: level measurements, simple pump control and level alarm functions
  • MultiRanger 200: level, volume & flow measurements in open channels, differential control, extended pump control and alarm functions
  • Ultrasonic Level Transmitter

Please note this product has been replaced by the MultiRanger 200 HMI and will not be available from October 2023

7ML50331AA001A
7ML5033-1AA00-1A MultiRanger 100/200 Ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall nount, standard enclosure
A Input voltage: 100 to 230 VAC
0 Number of measurement points: single point version
0 Data Communications (Smartlinx): without module
1 Output relays: 3 relays (2 Form A, 1 Form C), 250 V AC
A Approvals: General purpose, CE, CSA US/C, FM, UL, listed

Net Weight each (kg) 1.400 Kg
Commodity Code 90328900
Country of origin Canada
7ML5033-1AA00-1A MultiRanger 100/200 Ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall nount, standard enclosure
A Input voltage: 100 to 230 VAC
0 Number of measurement points: single point version
0 Data Communications (Smartlinx): without module
1 Output relays: 3 relays (2 Form A, 1 Form C), 250 V AC
A Approvals: General purpose, CE, CSA US/C, FM, UL, listed

Net Weight each (kg) 1.400 Kg
Commodity Code 90328900
Country of origin Canada

£1,247.40 (ex VAT)

£1,496.88 (inc VAT)

Call to order Contact to order
7ML50331AA002A
7ML5033-1AA00-2A MultiRanger 100/200 ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall nount, standard enclosure
A Input voltage: 100 to 230 VAC
0 Number of measurement points: single point version
0 Data Communications (Smartlinx): without module
2 Output relays: 6 relays (4 Form A, 2 Form C), 250 V AC
A Approvals: General purpose, CE, CSA US/C, FM, UL, listed

Net Weight each (kg) 1.400 Kg
Commodity Code 90328900
Country of origin Canada
7ML5033-1AA00-2A MultiRanger 100/200 ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall nount, standard enclosure
A Input voltage: 100 to 230 VAC
0 Number of measurement points: single point version
0 Data Communications (Smartlinx): without module
2 Output relays: 6 relays (4 Form A, 2 Form C), 250 V AC
A Approvals: General purpose, CE, CSA US/C, FM, UL, listed

Net Weight each (kg) 1.400 Kg
Commodity Code 90328900
Country of origin Canada

£1,366.20 (ex VAT)

£1,639.44 (inc VAT)

Call to order Contact to order
7ML50331AA101A
7ML5033-1AA10-1A MultiRanger 100/200 Ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall mount, standard enclosure
A Input voltage: 100 to 230 VAC
1 Number of measurement points: Dual point version
0 Data Communications (Smartlinx): Without module
1 Output relays: 3 relays (2 Form A, 1 Form C), 250 V AC
A Approvals: General Purpose, CE, FM,CSA US/C,UL, listed, RCM,EAC,KCC
7ML5033-1AA10-1A MultiRanger 100/200 Ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall mount, standard enclosure
A Input voltage: 100 to 230 VAC
1 Number of measurement points: Dual point version
0 Data Communications (Smartlinx): Without module
1 Output relays: 3 relays (2 Form A, 1 Form C), 250 V AC
A Approvals: General Purpose, CE, FM,CSA US/C,UL, listed, RCM,EAC,KCC

£1,492.20 (ex VAT)

£1,790.64 (inc VAT)

Call to order Contact to order
7ML50331AB001A
7ML5033-1AB00-1A MultiRanger 100/200 Ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall nount, standard enclosure
B Input voltage: 12 to 30 VDC
0 Number of measurement points: single point version
0 Data Communications (Smartlinx): without module
1 Output relays: 3 relays (2 Form A, 1 Form C), 250 V AC
A Approvals: General purpose, CE, CSA US/C, FM, UL, listed
7ML5033-1AB00-1A MultiRanger 100/200 Ultrasonic single and multi-vessel level monitor/controller
1 Versions: MultiRanger 100, level measurement
A Mounting, enclosure design: Wall nount, standard enclosure
B Input voltage: 12 to 30 VDC
0 Number of measurement points: single point version
0 Data Communications (Smartlinx): without module
1 Output relays: 3 relays (2 Form A, 1 Form C), 250 V AC
A Approvals: General purpose, CE, CSA US/C, FM, UL, listed

£1,247.40 (ex VAT)

£1,496.88 (inc VAT)

Call to order Contact to order
