Model Number: ECHOMAX XPS XCT

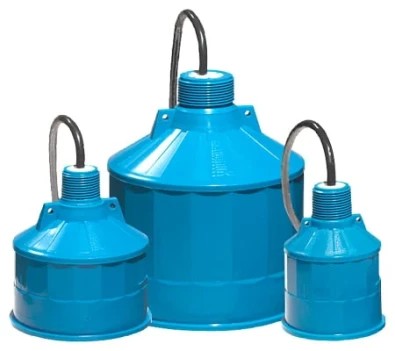

The Siemens Echomax XPS/XCT Ultrasonic Level Transmitters use ultrasonic technology to measure level in a wide range of liquids and solids. The transducers can be fully immersed, are resistant to steam and corrosive chemicals and can be installed without flanges.

Some of the benefits to using the Siemens Echomax XPS/XCT Ultrasonic Level Transmitters includes:

  • Integral temperature compensation
  • The low ringing effect reduces blanking distance
  • Optional foam facing for dusty applications Self-cleaning and low maintenance
  • Chemically resistant
  • Hermetically sealed Ultrasonic Level Transmitter

The transducers can be fully immersed, are resistant to steam and corrosive chemicals, and can be installed without flanges. The XPS series offers versions for various measuring ranges up to 40 m (130 ft) and up to a max. temperature of +95 °C (+203 °F). The XCT series can be used in applications at higher temperatures to measure level up to a distance of 12 m (40 ft) and at a max. temperature of +145 °C (+293 °F). During operation, the Echomax transducers emit acoustic pulses in a narrow beam. The level monitor measures the propagation time between pulse emission and its reflection (echo) to calculate the distance.
