Download Specification

Model Number: PROBE LU

Request a quote View Prices

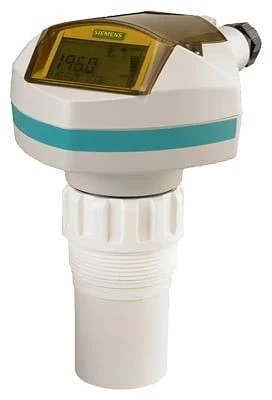

SITRANS Probe LU Ultrasonic Level Transmitter is a 2-wire loop powered ultrasonic transmitter for level, volume and flow monitoring of liquids in storage vessels and simple process vessels, as well as in open channels. The SITRANS Probe LU is ideal for level monitoring in the water and wastewater industry and chemical storage vessels.

Measuring range up to 12 meters
Safe or hazardous area duty
ETFE or PVDF wetted parts
4-20mA or Profibus output
Ultrasonic Level Transmitter

Please note this product has been replaced by the Siemens LU240 product range and will not be available from the October 2023

Part Number

Description

Price

Quantity

7ML1830-2AN

GENERIC HAND PROGRAMMER WITH GENERAL PURPOSE APPROVALS

Check availability Request a quote

7ML5221-1BA11

SIEMENS Sitrans Probe LU 2-wire loop powered Ultrasonic level transmitter, Enclosure / Cable Inlet: Plastic (PBT), 2 x M20, Range / Transducer Material: 6 meter (20 ft), PVDF Copolymer, Process Connection: 2 NPT ANSI/ASME B1.20.1, Communication / Output: 4-20 mA, HART®, Approval: General purpose, FM, CSA, CE.

Check availability Request a quote

7ML5221-1BB11

SIEMENS Sitrans Probe LU. 2-wire, loop pwoered Ultrasonic Level transmitter, Enclosure / Cable Inlet Plastic (PBT) 2 x M20, Range / Transducer material: 6 meter (20 ft), PVDF Copolymer, Process Connection, R 2 BSPT, EN 10226, Communication / Output, 4-20 mA, HART®. Approval, General purpose, FM, CSA, CE.
Commodity Code: 90261029, Net weight each: 2.2 KG, Country of origin: Canada

Check availability Request a quote

7ML5221-1BB17

SIEMENS Sitrans Probe LU 2-wire, loop powered Ultrasonic level transmitter, Enclosure/Cable Inlet: Plastic (PBT) 2 x M20, Range / Transducer material: 6 meter (20 ft), PVDF Copolymer, Process Connection: R 2" BSPT EN10226, Communication / Output: 4-20mA, HART, Approval: Intrinsically safe, ATEX II 1 G EEx ia IIC T4, ANZEx, IECEx, INMETRO, CE, C-TICK, KCC

Check availability Request a quote

7ML5221-1DA11

SIEMENS Sitrans Probe LU: 2-wire, loop powered Ultrasonic level transmitter, Enclosure / Cable Inlet: Plastic (PBT) 2 x M20, Range / Transducer Material : 12 meters (40 ft), PVDF Copolymer, Process connection: 2" NPT, ANSI/ASME B1.20.1, Communication / Output: 4 to 20 mA, HART Approvals: General use, FM, CSA, CE, C-Tick, KCC

Check availability Request a quote

7ML5221-1DB11

Siemens SITRANS Probe LU 2-wire Ultrasonic level transmitter, Enclosure/Cable Inlet: Plastic (PBT), 2 x M20 Range/Transducer Material: 12 meters (40 ft), PVDF Copolymer, Process Connection: R 2" BSPT, EN 10226, Communication / Output: 4 to 20 mA, HART Approvals: General use, FM, CSA, CE, C-Tick, KCC
Country of origin: Canada, Commodity code: 90261029, Net weight each: 2.2 KG

Check availability Request a quote

7ML5221-2BA11

SIEMENS Sitrans Probe LU: 2-wire loop pwoered Ultrasonic level transmitter, Enclosure/Cable Inlet: Plastic PBT, 2 x 1/2" NPT, Range / Transducer material: 6 meters (20 ft), PVDF Copolymer, Process Connection: 2" NPT ANSI/ASME B1.20.1, Communication / Output: 4 to 20 mA, HART Approvals: General use, FM, CSA, CE, C-Tick, KCC
HS Code: 9026 1029

Check availability Request a quote

7ML5221-2BB11

SIEMENS Sitrans Probe LU: 2-wire loop powered Ultrasonic level transmitter, Enclosure / Cable Inlet: Plastic (PBT), 2 x 1/2" NPT Range / Transducer material: 6 meters (20 ft), PVDF Copolymer, Process Connection: R 2" BSPT EN 10226, Communication / Output: 4 to 20 mA, HART Approvals: General use, FM, CSA, CE, C-Tick, KCC

Check availability Request a quote

7ML5221-2DA11

SIEMENS Sitrans Probe LU: 2-wire loop powered Ultrasonic level transmitter, Enclosure/Cable Inlet: Plastic (PBT), 2 x 1/2" NPT, Range / Transducer material: 12 meters (40 ft), PVDF Copolymer, Process Connection: 2" NPT ANSI/ASME B1.20.1, Communication / Output: 4 to 20 mA, HART Approvals: General use, FM, CSA, CE, C-Tick, KCC

Check availability Request a quote

7ML5221-2DA14

SITRANS Probe LU Ultrasonic Level Transmitter is a 2-wire loop powered ultrasonic transmitter for level, volume and flow monitoring of liquids in storage vessels and simple process vessels, as well as in open channels. The SITRANS Probe LU is ideal for level monitoring in the water and wastewater industry and chemical storage vessels.

• Measuring range up to 12 meters
• Safe or hazardous area duty
• ETFE or PVDF wetted parts
• 4-20mA or profibus output
• Ultrasonic Level Transmitter

See more See Less

Check availability Request a quote

7ML5221-2DB11

SIEMENS Sitrans Probe LU 2-wire, loop pwoered Ultrasonic level transmitter, Enclosure/Cable Inlet: plastic (PBT) 2 x 1/2" NPT, Range / Transducer material: 12 meters (40 ft), PVDF Copolymer, Process Connection: R 2" BSPT, EN 10226, Communication / Output: 4 to 20 mA, HART Approvals: General use, FM, CSA, CE, C-Tick, KCC

Check availability Request a quote

7ML52211BB17

Check availability Request a quote
