Model Number: FUS880

THIS PRODUCT IS NO LONGER AVAILABLE FROM 30TH MAY 2017

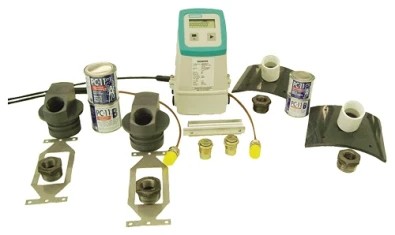

The SITRANS FUS880 is a battery-powered flow meter that can be retrofitted onto existing pipelines and is approved for underground installation and operation. It has been developed especially for the irrigation industry and can measure on single or double-walled pipes and smooth or corrugated constructions. The meter has wetted transducers assuring superior accuracy and performance. It has galvanic isolated pulse outputs for both flow directions and a display that indicates measured values, signal and operation information. Application Examples: Irrigation distribution systems, Pumping stations, On-farm outlets.

  • Measuring Range: Qs 380 to 13200 m3/h (depends on size)
  • Nominal Size: DN 200 to DN 1200 (8" to 48")
  • Accuracy: ± 2% of the flow rate
  • Operational Pressure: Max. 5.5 bar / Max. 80 psi
  • Operating Temperature: From -5 to 60 °C (23 to 140 °F)
  • Medium Temperature: Max. 60 °C (Max. 140 °F)
  • Design: 1 or 2 tracks
  • Material: Typical pipe material: plastics and concrete
