Model Number: FCS200

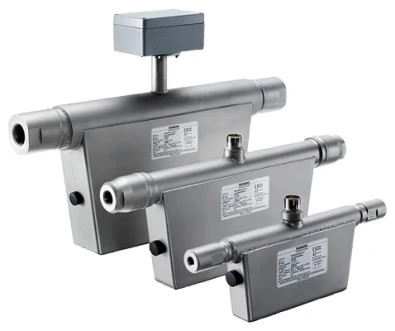

The ultra-compact SITRANS FCS200 sensor fits in where space is crucial, providing extra flexibility in any compressed natural gas (CNG) application for both new installations and replacements. With unparalleled accuracy and capacity under high pressure and hazardous conditions, the SITRANS FCS200 sensor sets a new standard for efficiency and safety in CNG. It is available in three sizes and is easy to install, with a wide range of different connections available.

  • Measuring range - kg/h (lbs/min): From 250 (9,2) to 30.000 (1.102,3)
  • Nominal size: From DN 10 to 25
  • Accuracy: 0.5 %
  • Nominal pressure: Max 350 bar ( 5076 psi)
  • Ambient temperature: From -40 to 60 °C (-40 to 140° F)
  • Medium temperature: From -40 to 125 °C (-40 to 257 °F)
  • Sensor design: Two tubes bended
  • Enclosure: IP66 / IP67 (EN60529)
  • Approvals: ATEX: II ½ G Ex ia II C T5 – T
