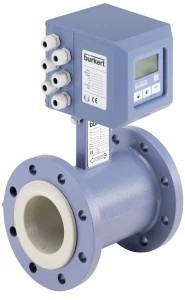

Burkert Type 8055 - Electromagnetic Flow Meter

Model Number: 8055

Discontinued

This full bore BURKERT TYPE 8055; magmeter with a large graphic display is designed for applications with a minimum conductivity of 5uS/cm. Type 8055 can be programmed locally with 3 key pads or by computer with a serial interface RS485.

  • Pipe diameter DN 3 up to DN 100
  • Measuring range 0...10 l/h, 0...280 m3/h
  • Accuracy +/- 0.2% (or range)
  • Process connection DIN 11851 and Tri-Clamp, Threaded ISO 228-1 and NPT, Flanged DIN 2501, ANSI 150 RF
  • Body materials: Stainless steel 304 - 1.4301, Carbon Steel
  • Lining material PTFE or PP
  • Voltage supply 90-265 VAC
