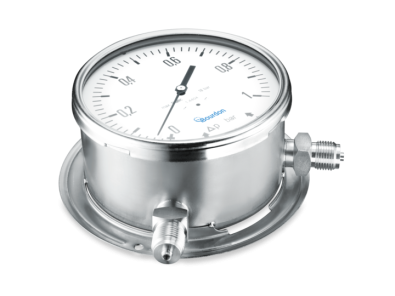

Bourdon

Model Number: MT7

Nominal size: 150 mm
Case material: Stainless steel 1.4301 / AISI 304 (316L optional)
Bezel ring material: Stainless steel 1.4301 / AISI 304 (316L optional)
Window material: Laminated safety glass
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Stainless steel
Wetted parts: Process connection material Stainless steel 1.4404 / AISI 316L
Bellow: Stainless steel 1.4404 / AISI 316L, 2 bellows per gauge
Performance: Accuracy ± 2 % for standard ranges
Min. measuring range 0 ... 0.1 bar / Max. measuring range 0 ... 25 bar
Static pressure 100 bar max.
