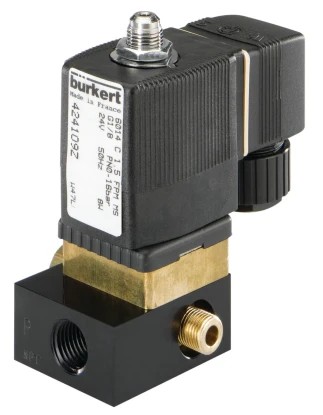

Burkert Type 6014 - 3/2 Way Solenoid Valve Direct Mounting

Burkert Type 6014 - 3/2 Way Solenoid Valve Direct Mounting
Download Manual Download Specification

Model Number: 6014 BANJO

Contact to order Prices

Modular direct acting solenoid valve developed for pilot operating externally controlled actuators/ Mounting using banjo bolt connection.

  • Port size 1/8" - 1/4"
  • Pressure range 0-10 bar
  • Body material Brass or Polyamide
  • Seal material FKM
125368F
Typ e 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection FB01 - flange pattern: Buerkert CL-NO.001-01-06 (32 X 32)
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.288KG
Typ e 6014
Circuit function C - 3/2-way; output A relieved in idle position
Orifice size 02,0 - 2,0mm (5/64")
Seal material FF - FKM
Material MS - brass
Port connection FB01 - flange pattern: Buerkert CL-NO.001-01-06 (32 X 32)
Coil size 5 - 32 mm
Voltage 024 - 24 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Pressure (bar) (max) 10
Pressure (bar) (min) 0

HS Code 84818079
Country of Origin Germany
Net Weight 0.288KG

£67.40 (ex VAT)

£80.88 (inc VAT)

Call to order Contact to order
